Removal
Tire Removal
1.
Deflate tire & remove balance weights.

Sensor can be unscrewed before unseat the tire bead.

•

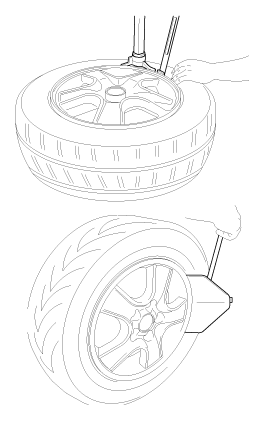

The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
•
Avoid tire/tool contact with the valve on dismount.
•
Dismount should end near the valve.

Sensor Removal

Handle the sensor with care.
1.
Remove the valve nut.


The valve nut should not be re-used.
2.
Discard the valve assembly.
Installation
Sensor Fit

•
Handle the sensor with care.
•
Avoid lubricant contact.
•
Ensure that the wheel to be fitted is designed for sensor mount. There should normally be a mark to indicate this.
•
Ensure that the valve hole and mating face of the wheel are clean.
1.
Slide the sensor-valve unit through the valve hole of the rim. Hold the sensor against the rim and the rubber grommet against the sealing surface.
2.
Insert the nut over the valve stem and then tighten the nut.

3.
Continue to tightening the nut until contact with the rim and then tighten to 3.5 ~ 4.5Nm.


–
Tighten slowly with quarter turn steps until the final torque is reached.
–
Do not exceed allowed torque.
–
Do not use electric or pneumatic tools.
4.
Check that the sensor is firmly attached to the rim.

Risk of damage during the tire installation/ removal if the sensor is not firmly attached to the rim.
5.
Carry out inflation / pressure correction and then fit valve cap.

Change the newly installed sensor mode to Normal Fixed Base(Low Line) with the ''GDS''.
Mode (Status / option) of the sensor installed to the vehicle should be Normal Fixed Base (Low).

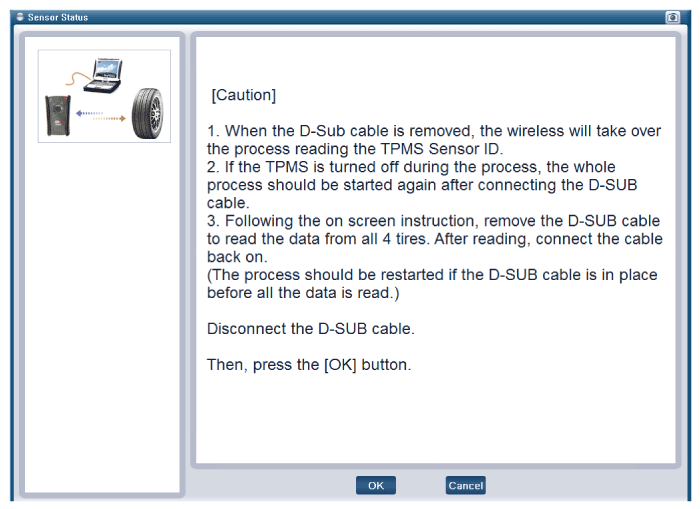

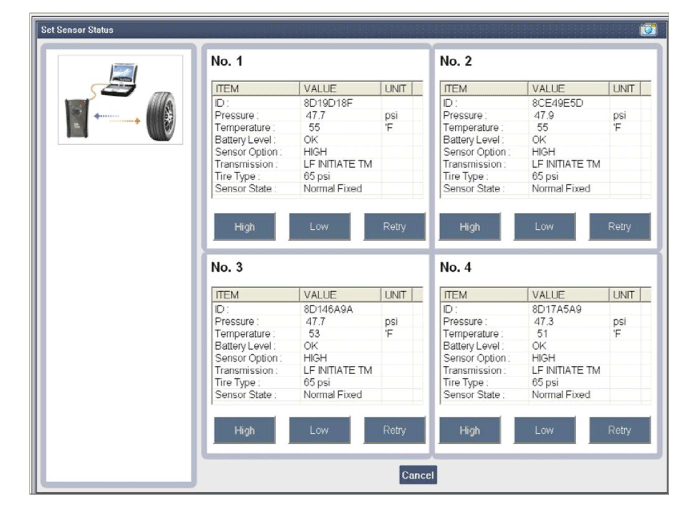

[Set Sensor Status 1]

[Set Sensor Status 2]

[Set Sensor Status 3]

[Set Sensor Status 4]

[Set Sensor Status 5]

[Set Sensor Status 6]

6.
Install the tire. (Refer to "Tire Installation")
7.
In the case of TPMS sensor failure, TPMS sensor needs learning. Faulty sensor is replaced new units, conduct learning of TPMS sensors.

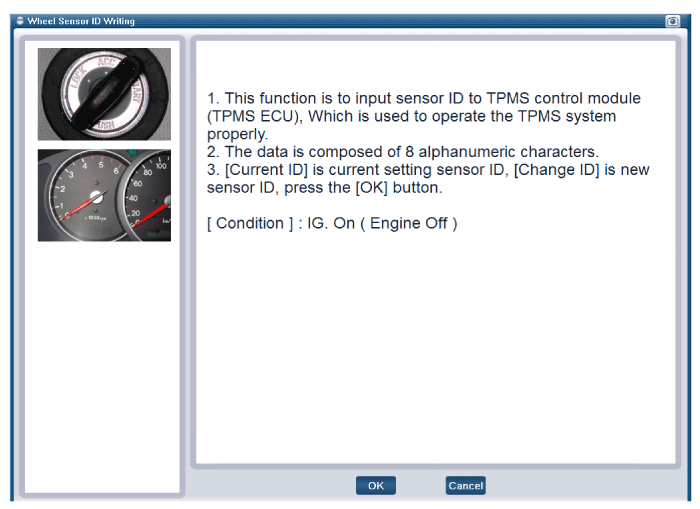

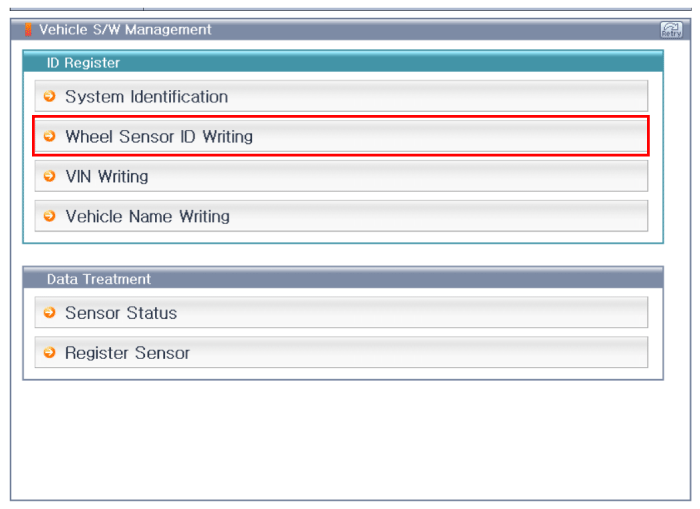

[Wheel Sensor ID Writing (Wireless) initialization]

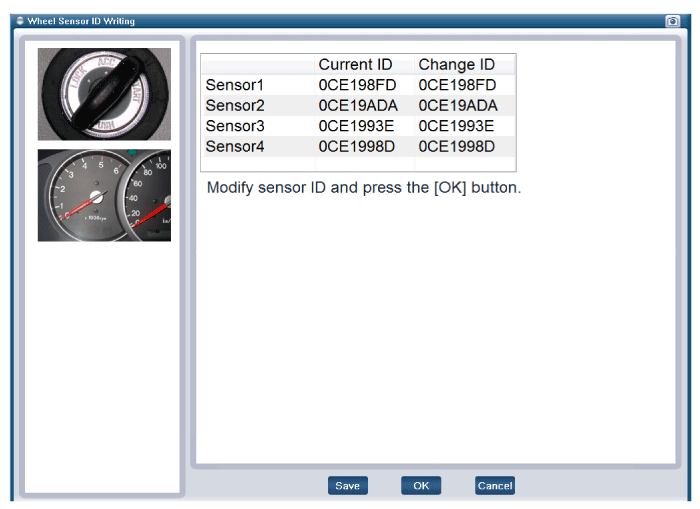

[Wheel Sensor ID Writing (Wireless) 1]

[Wheel Sensor ID Writing (Wireless) 2]

Diagnosis procedure by using diagnostic device
As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.

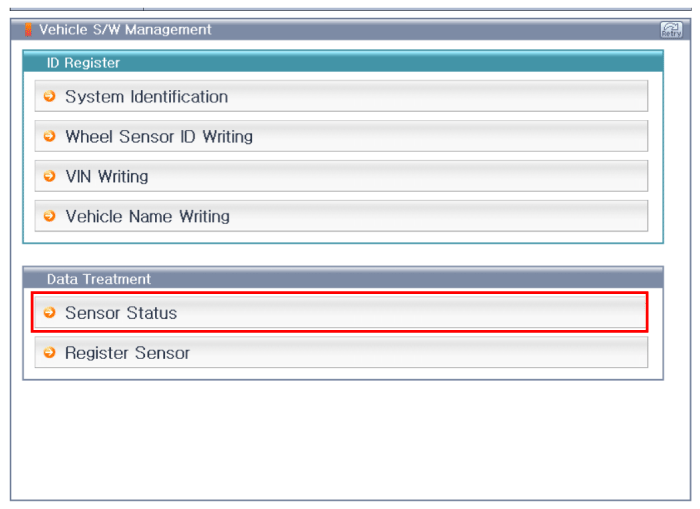

Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

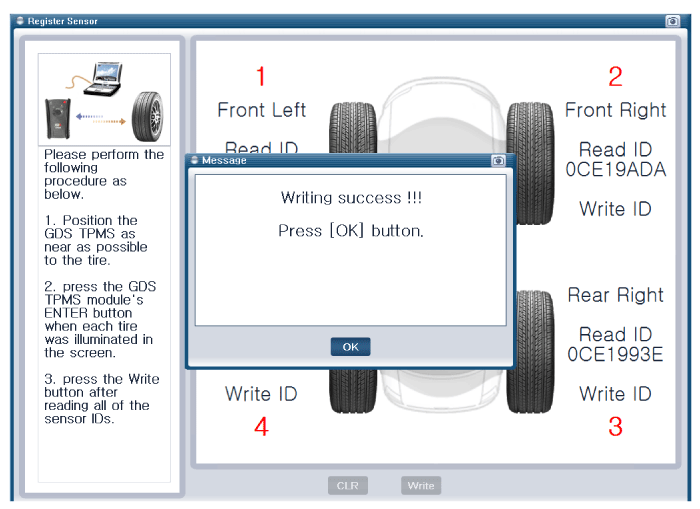

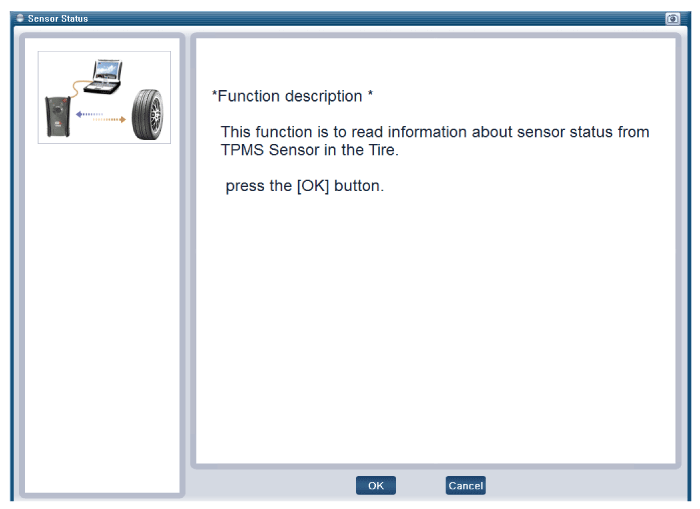

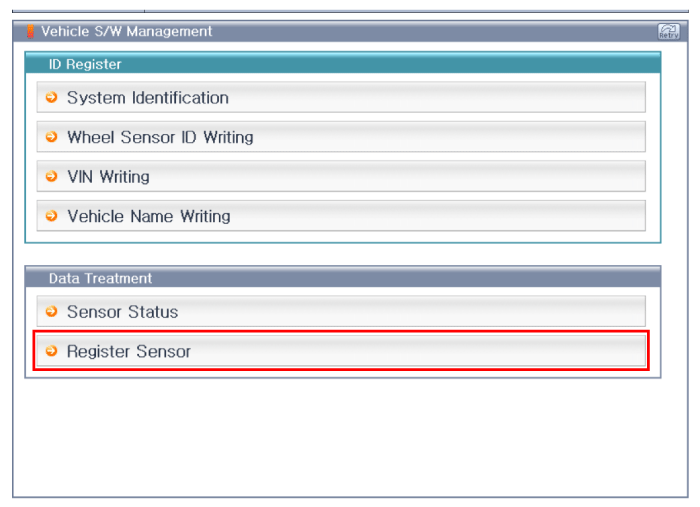

[Register Sensor initialization]

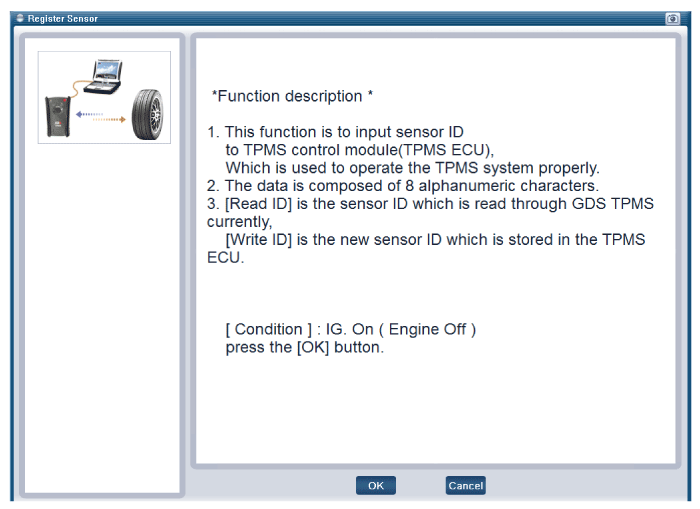

[Register Sensor function description]

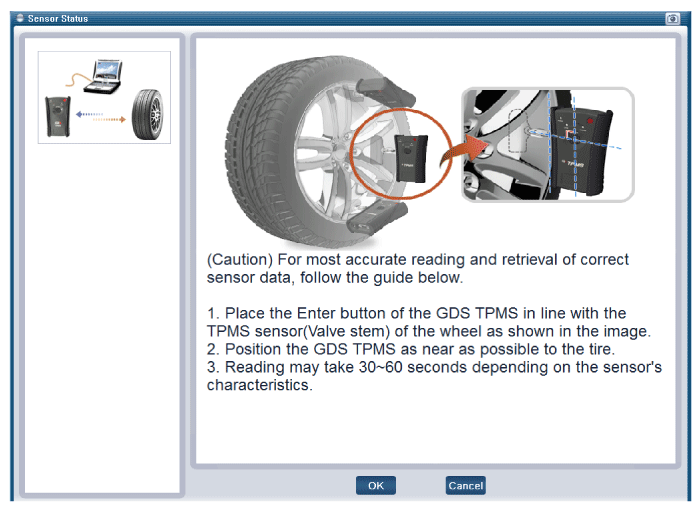

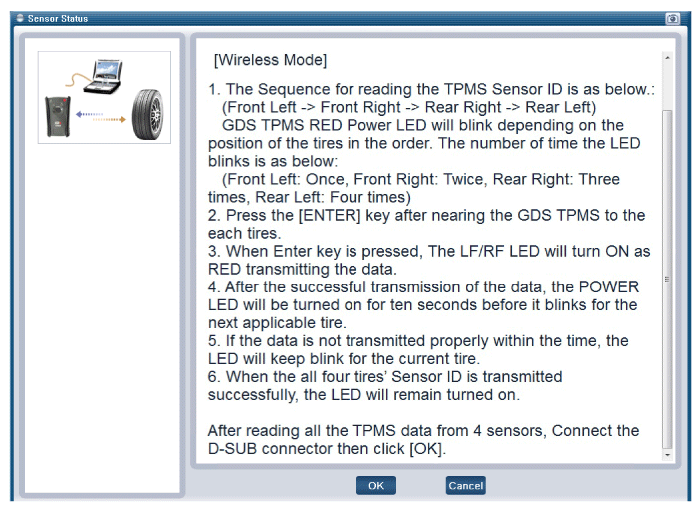

[Preparation phase sensor measurements]

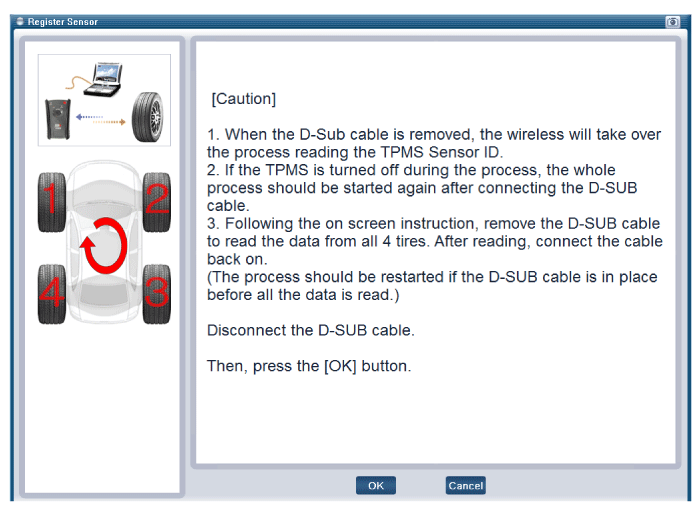

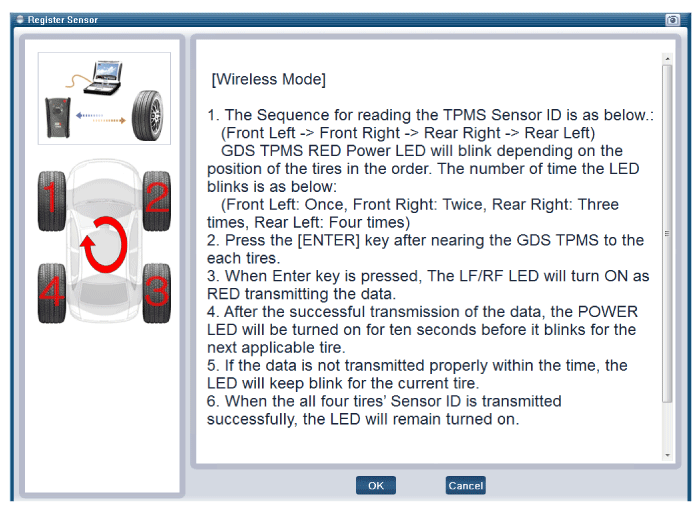

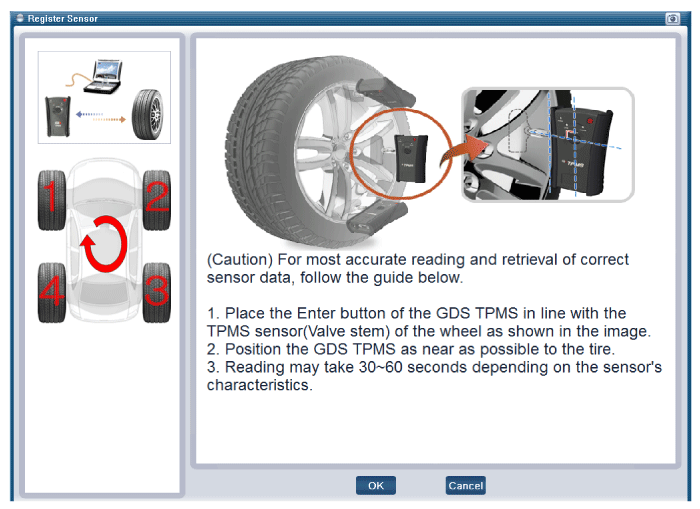

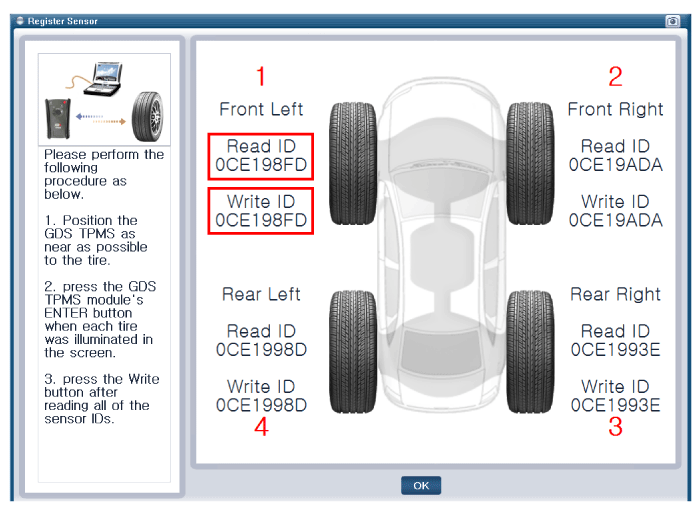

[Sensor register method 1]

[Sensor register method 2]

[Sensor register method 3]

[Sensor register method 4]

[Sensor register method 5]


•

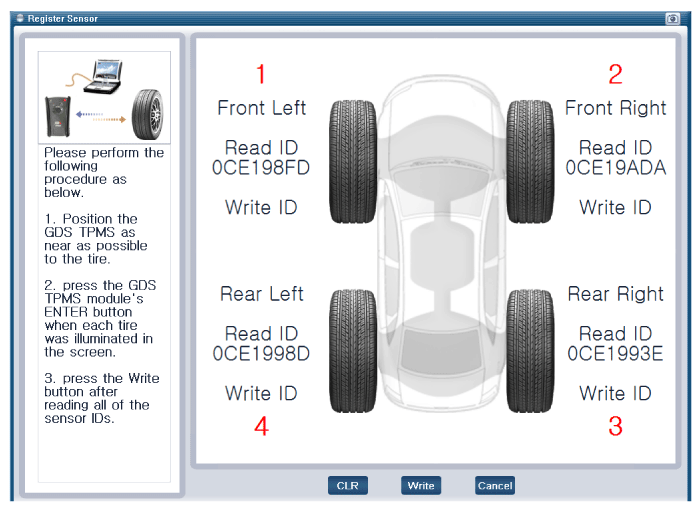

Write ID Read ID and be sure to check are the same.
•
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
