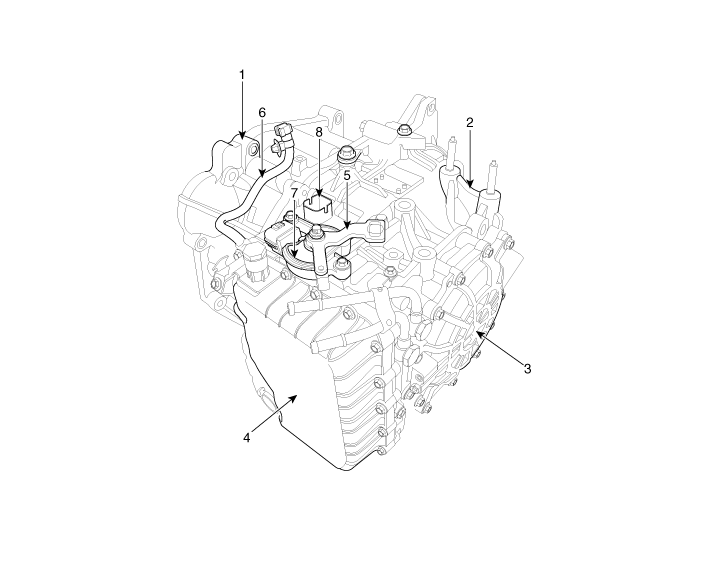

Kia Sportage: Automatic Transaxle: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Automatic Transaxle System / Automatic Transaxle: Components and Components Location

Automatic Transaxle System

...

Automatic Transaxle: Repair procedures

Removal 1. Remove the following items; • Engine cover (A). • Air cleaner assembly and air duct (B). (Refer to "Intake and Exhaust system" in EM group.) • Batter ...

Other Information:

Relay Box (Engine Compartment): Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. A ...

Rear Hub - Carrier: Components and Components Location
Components 1. Hub cover2. Carrier assembly3. Hub & bearing assembly4. Hub mounting bolt5. Bushing6. Bushing7. Carrier assembly8. Bearing9. Snap ring10. Hub assembly11. Hub bolt12. Bushing ...
