Kia Sportage: Schematic Diagrams - Keyless Entry And Burglar Alarm - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Schematic Diagrams

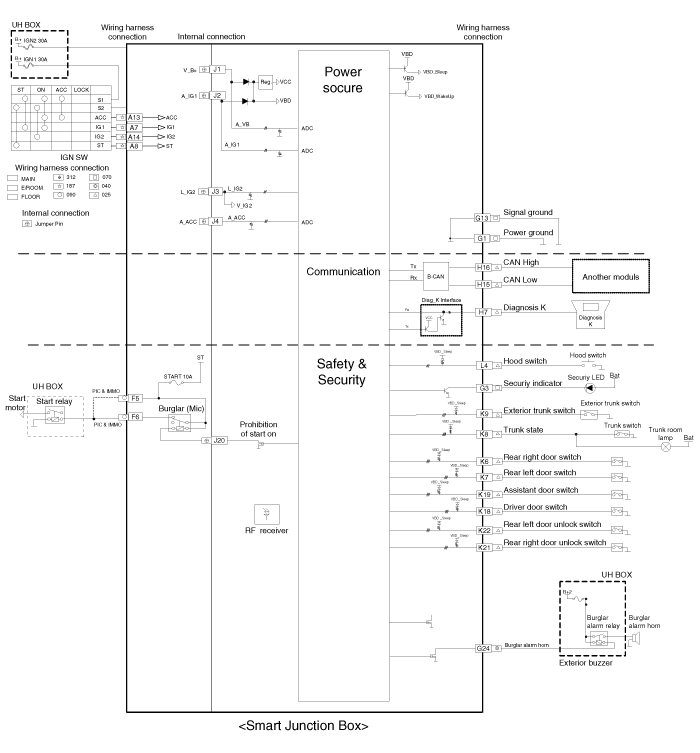

Circuit Diagram

Components and Components Location
Component Location (1) 1. Hood switch2. Burglar horn3. RKE receiver4. BCM (Body Control Module)5. Front door switch6. Front door lock actuator & switch7. Rear door lock actuator & switch8 ...

Description and Operation
Description Remote Keyless Entry System The described function is a radio-frequency remote control for central doors locking / unlocking, trunk release and Panic activity of an automotive vehi ...
