Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Smart key System / Components and Components Location

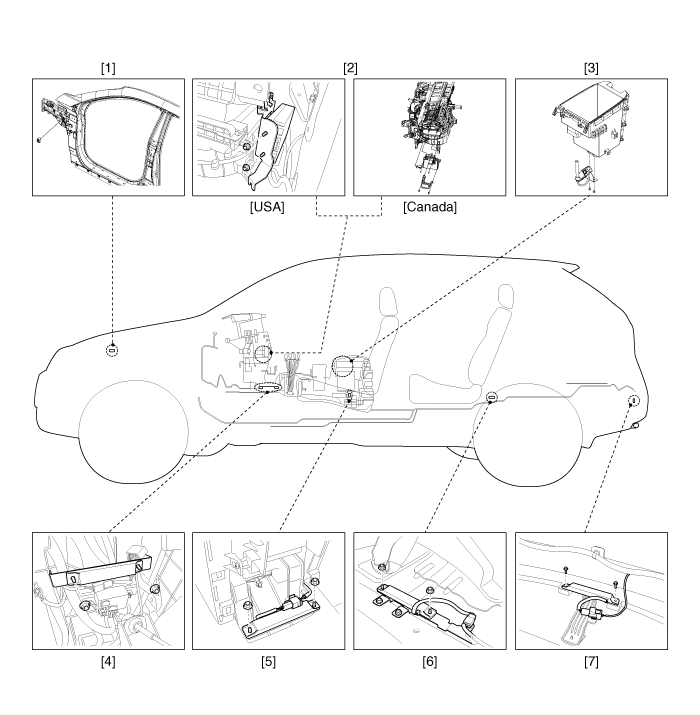

| Component Location (1) |
| 1. Buzzer 2. Smart key unit 3. RF receiver 4. Interior antenna 1 | 5. Interior antenna 2 6. Interior antenna 3 7. Bumper antenna |

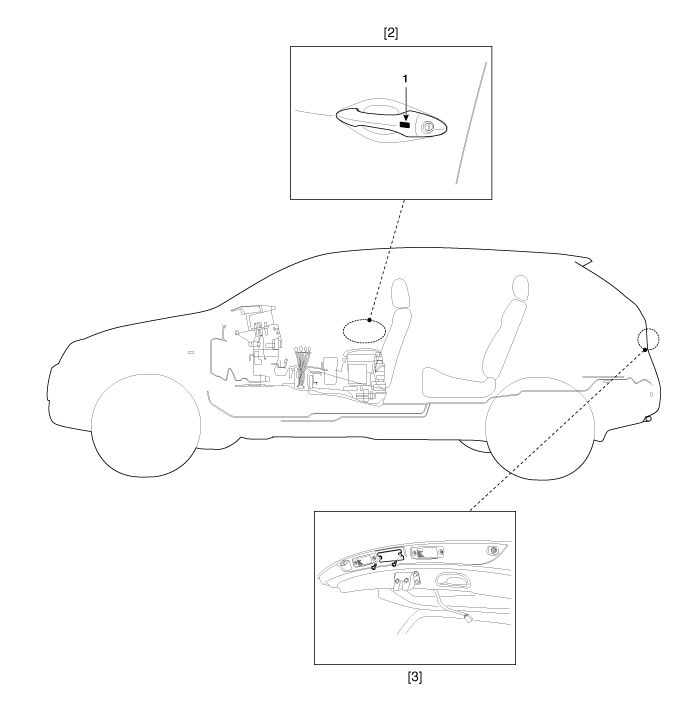

| Component Location (2) |
| 1. Door outside handle button 2. Door outside handle | 3. Tailgate switch |
Specifications
Specifications
Smart Key Unit
ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 167°F (-30°C ~ 75°C)LoadMax. 3mA
RF Receiver
ItemsSpecificationFr ...
Description and Operation
Description
The SMART KEY system is a system that allows the user to
access and operate a vehicle in a very convenient way. To access the
vehicle, no traditional key or remote control unit is n ...
