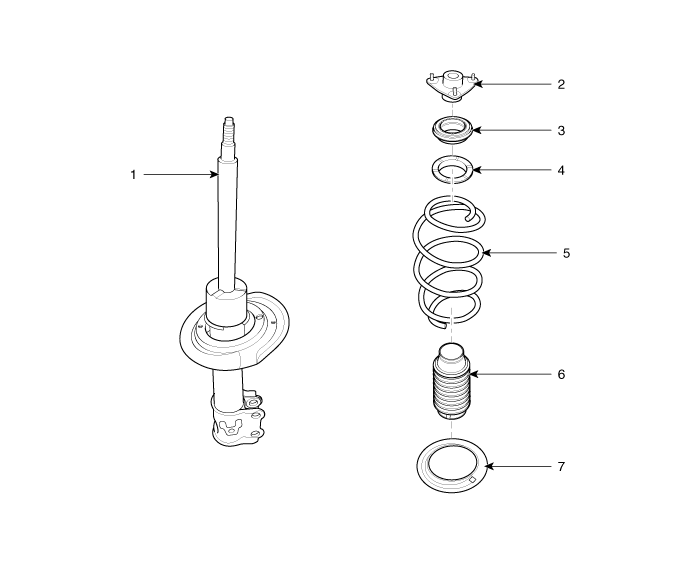

Components

1. Strut assembly
2. Insulator
3. Bearing
4. Spring upper pad
5. Spring
6. Dust cover
7. Spring lower pad

Components and Components Location
Components Location 1. Front axle2. Front lower arm3. Drive shaft4. Stabilizer bar5. Steering gearbox6. Sub frame7. Front strut assembly ...

Front Strut Assembly: Repair procedures
Replacement 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub ...
