Components

Components and Components Location

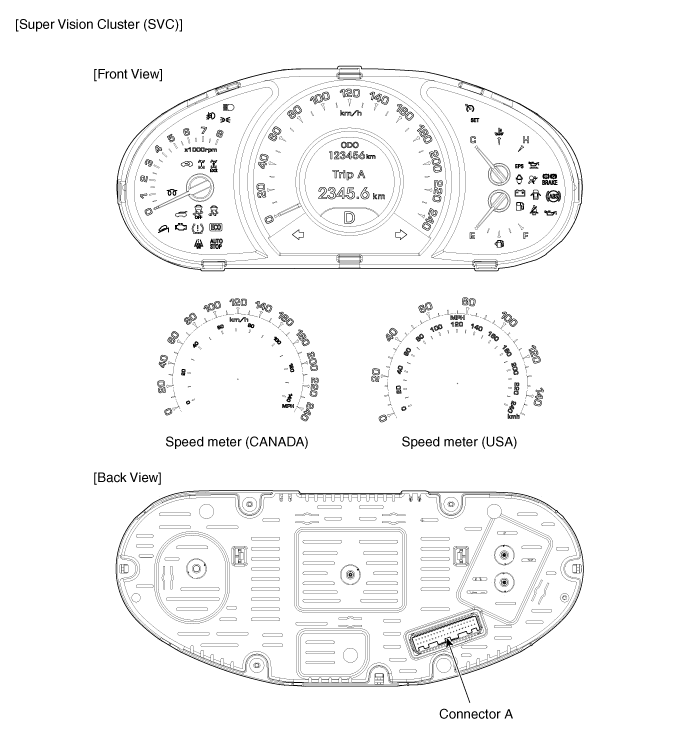

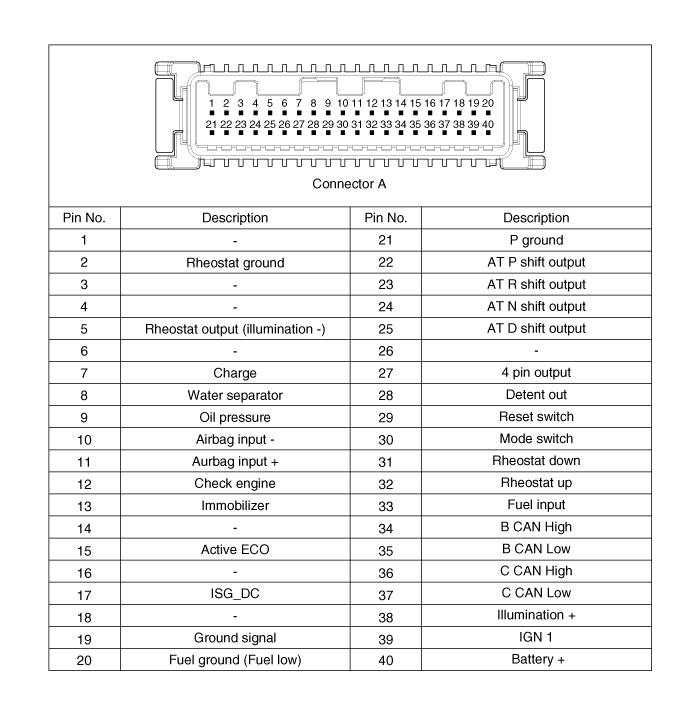

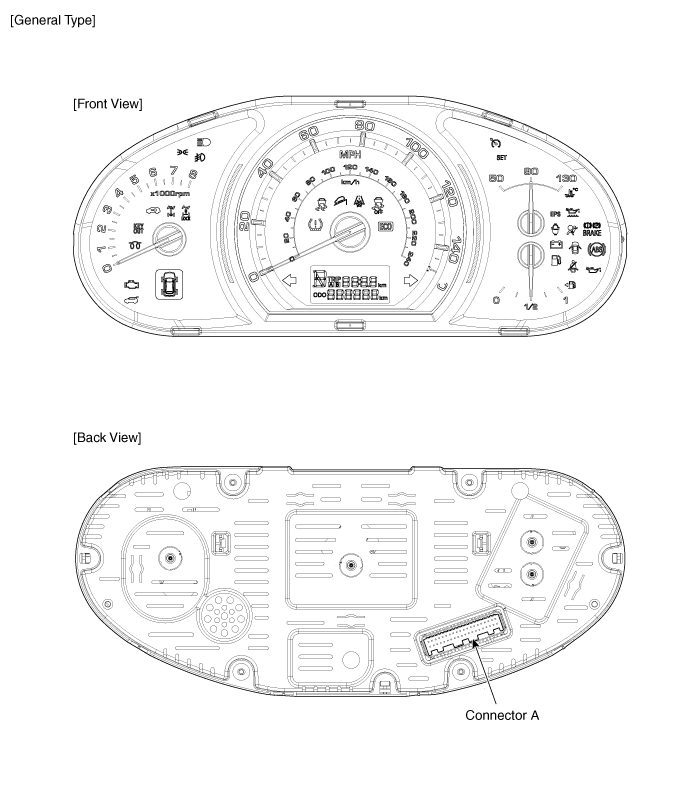

Component Location 1. Cluster assembly2. Seat belt switch3. Vehicle speed sensor4. Engine coolant temperature sender5. Oil pressure switch6. Brake fluid level warning switch7. Parking brake switc ...

Instrument Cluster: Schematic Diagrams
Circuit Diagram (1) Circuit Diagram (2) CLU1 message signal flow (B > C CAN gateway) CLU2 message signal flow (B > C CAN gateway) CLU message 1 signal flow (C > B CAN gateway) CLU message 3 signa ...
