Kia Sportage: Power Window Switch: Components and Components Location - Power Windows - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Power Window Switch: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Power Windows / Power Window Switch: Components and Components Location

Components

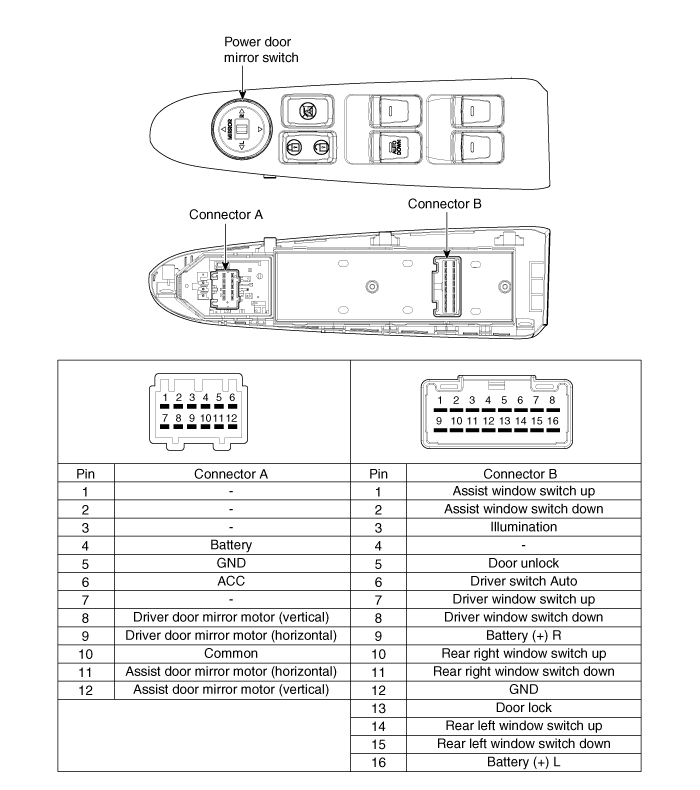

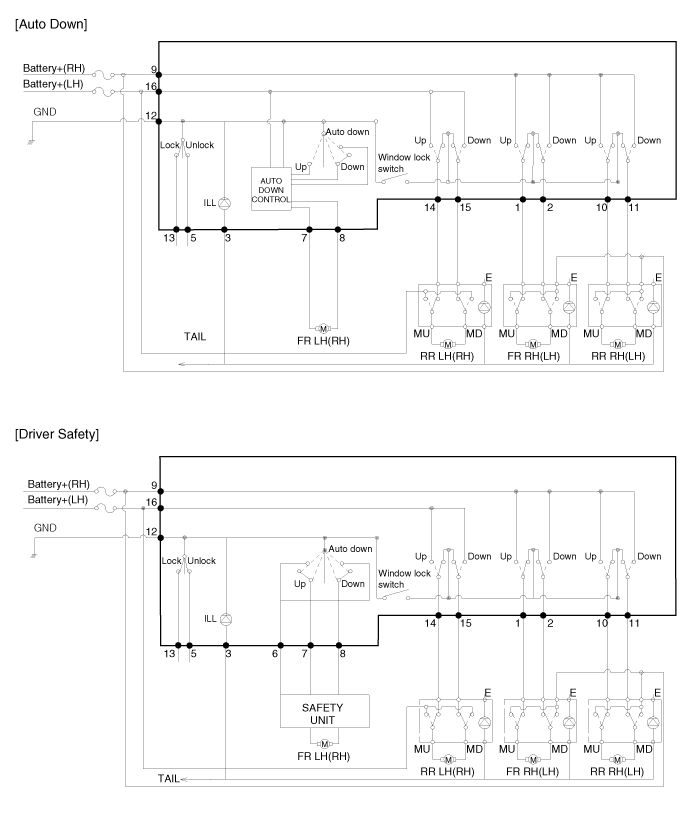

Power Window Main Switch

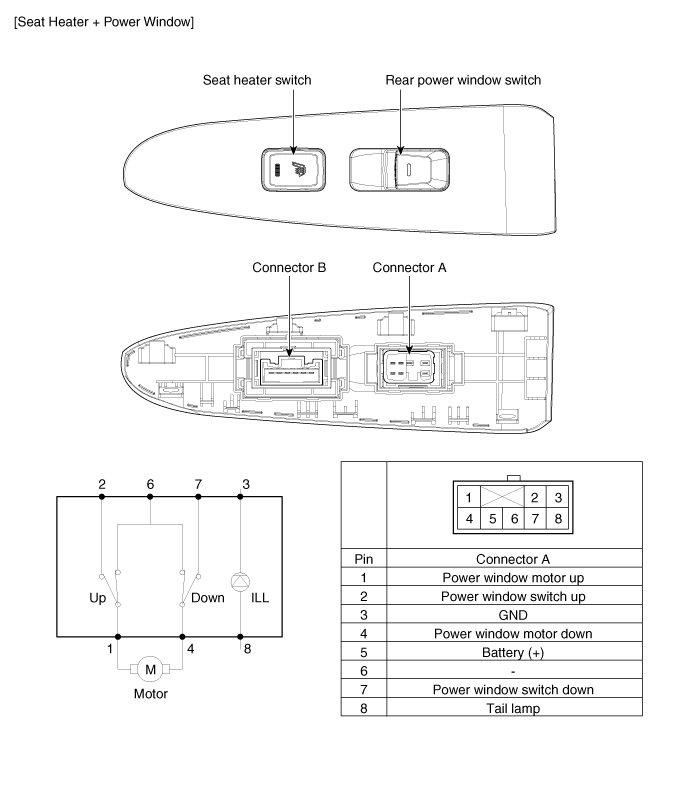

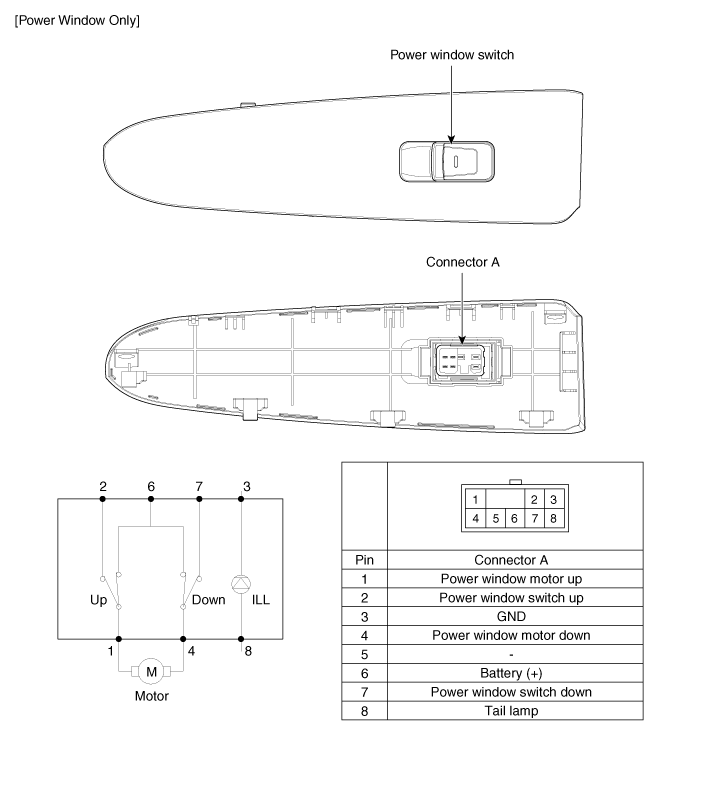

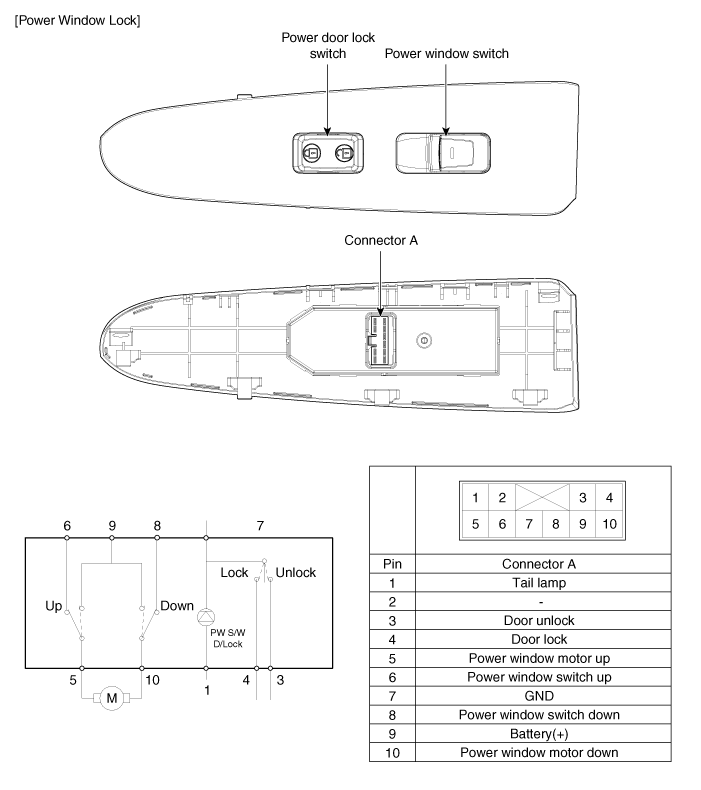

Passenger Power Window Switch

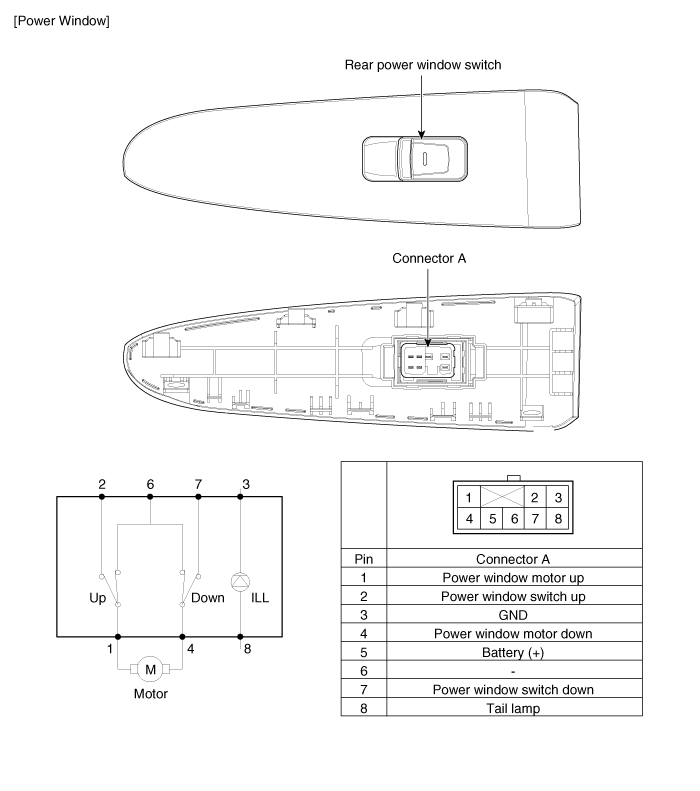

Rear Power Window Switch
