Kia Sportage: Propeller Shaft: Components and Components Location - Propeller Shaft Assembly - Driveshaft and axle - Kia Sportage SL Service & Repair ManualKia Sportage: Propeller Shaft: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Driveshaft and axle / Propeller Shaft Assembly / Propeller Shaft: Components and Components Location

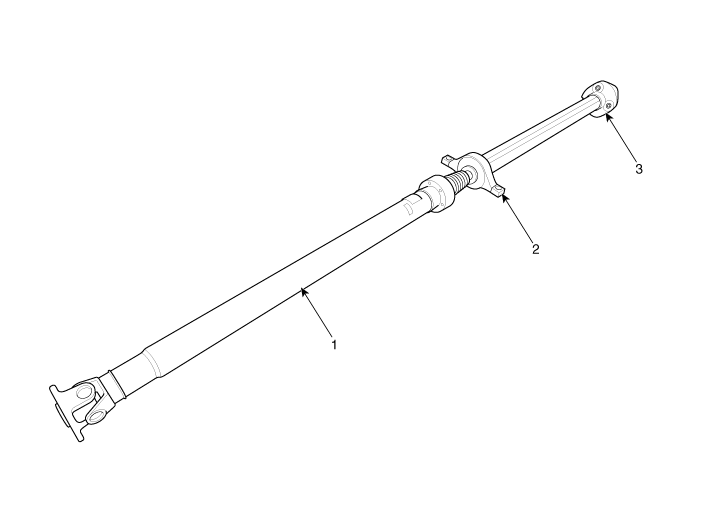

Components

1. Front propeller shaft
2. Center bearing bracket

3. Rear propeller shaft
