Kia Sportage: Remote control
Electric type
The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors. To adjust the position of either mirror the ignition switch should be in the ACC position.

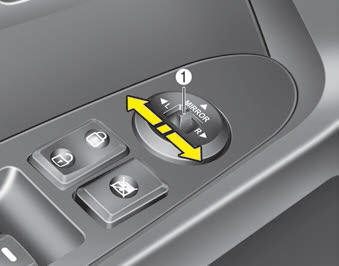

Move the switch (1) to R or L to select the right side mirror or the left side mirror, then press a corresponding point on the mirror adjustment control to position the selected mirror up, down, left or right. After the adjustment, put the switch into the neutral (center) position to prevent inadvertent adjustment.
CAUTION
- The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
- Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the parts.
Outside rearview mirror
Be sure to adjust the mirror angles before driving.
Your vehicle is equipped with both left-hand and right-hand outside rearview
mirrors. The mirrors can be adjusted remotely with the remote switch ...
Folding the outside rearview mirror
Manual type (if equipped)
To fold the outside rearview mirror, grasp the housing of the mirror and then
fold it toward the rear of the vehicle.
Electric type (if equipped)
To fold the outside ...
