Description
Remote Keyless Entry System
The described function is a radio-frequency remote control for central doors locking / unlocking, trunk release and Panic activity of an automotive vehicle without using a mechanical key.
This system confirms successful (un-)locking through flash light or/and a horn signal.
This will be a part of the equipment of vehicles in case of the Non-SMK variant.
–
Transmitter with 3 buttons (door locking, door unlocking, and panic)
–
Receiver is integrated in the BCM.
–
BCM, control unit in which remote control decoding is done

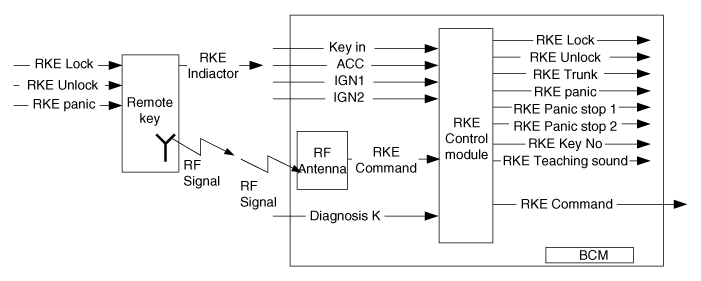

RF System Function Data Flow

Key (button) Operation
1.
New button event is detected in the condition of "button-off".
2.
Chattering time of Lock/Unlock buttons is 100 ms and Trunk button have 1s chattering time and Panic button is 500ms.
3.
If a button switch is off before determining the button switch value (100ms), RF transmission is stopped.
4.
If more two buttons pressed simultaneously, older is rejected.

Key(button) Operation Abnormal Transmit Timing Chart
Indicator (LED)
Each transmitter has a red LED on the housing top. It indicates the transmission activity. The LED blinks same times with RF data First valid frame transmission times follow is "normal frame" case.
Normal frame cases are Lock frame, Unlock frame, Panic frame, Trunk frame. it is also valid case and first detection frame.
There is one exception to this rule, Panic Stop frame has to ignore for LED blinking.
If you want to know other cases, refer the figure in chapter for Validated Key (button) Input for Protection of Panic noise.
When RF Data is transmitted, the LED is blinked like below.

Receiver & BCM Function
This function describes the following features
–
RKE Lock
–
RKE Unlock
–
RKE Panic
–
RKE PanicStop1/ RKE PanicStop2
–
Memory order by RKE Lock
–
Key Teaching
–
Synchronization / Resynchronization
Key Teaching
Key Teaching is that BCM has the identification of remote key and Synchronization of rolling code between BCM and remote key
1.
Key Teaching with GDS Diagnostic Tool
•
Key teaching Step refers to the Diagnostic Specification.
Step
User Action
BCM Action
1
Connect Diag-Tool to BCM
?
2
Start Diag-Tool RKE Teaching Mode
BCM ready RKE Teaching
3
Press the RKE’s any Button
–
BCM Save the issue RKE''s ID Code and Rolling Code.
–
If RKE Teaching succeeds, BCM sounds the internal buzzer one time.
4
If user wants teach additional RKE, enter the Diag-Tool''s additional RKE Teaching Mode
BCM ready RKE Teaching
5
Press the RKE’s any Button
–
BCM Save the issue RKE''s ID Code and Rolling Code.
–
If RKE Teaching succeeds, BCM sounds the internal buzzer one time.
6
If user wants teach additional RKE, repeat step4,5
Maximum 4 RKE''s Teaching is Possible.
7
If user doesn''t want teach RKE, enter the Diag-Tool''s Stop RKE Teaching Mode
BCM terminate RKE Teaching mode.

2.
Key Teaching Sound
Only for information: (RKE teaching sound is described in Warning function specification)
•
When each Key’s teaching is ended, magnetic buzzer is operated, every one time.
•
Key Teaching Buzzer Sound Characteristics
Type
Magnetic Buzzer
Key Teaching Buzzer Sound frequency :
800 Hz
Key Teaching Buzzer Sound Signal Duty Ratio :
50% Duty
Key Teaching Buzzer Sound Period :
0.6 sec
Key Teaching Buzzer Sound duration :
0.6 sec

Burglar Alarm System
•
The Burglar Alarm System is a function used to prevent or deter the unauthorized appropriation of the vehicle. Theft prevention or Burglar Alarm function has been introduced to assert the ownership whenever the rightful owner is physically present. In an attempt to discourage theft, Burglar Alarm works by emitting high-volume sound (Horn) when triggered by circuit breach. This vehicle alarm is designed to be triggered by opening special switches (e.g. doors, hood, trunk open switch contacts)
•
This system also prevents the car from starting by disabling Starter relay if intrusion has been detected.
•
To indicate that the vehicle is anti-theft protected a blinking indicator located at a visible area in the vehicle is provided (this is part of a theft preventive action).
The Alarm System function group consists of an Burglar Alarm function.
The Burglar Alarm offers a theft protection functions which
1.
Armed by
•
Mechanical key lock switch in driver side door if Mechanical Option is set
•
By RKE lock or SMK lock command
•
All door lock and then all door closed if Mechanical Option is set
2.
Triggers an alarm when
•
Any doors open
•
Hood open
•
Trunk open by unknown event
3.
Disarmed by
•
Turning the mechanical key unlock switch in driver side door if Mechanical Option is set
•
By RKE unlock or SMK unlock command

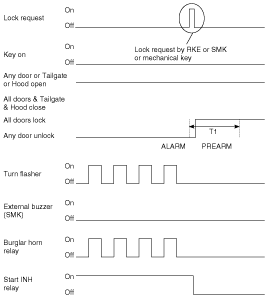

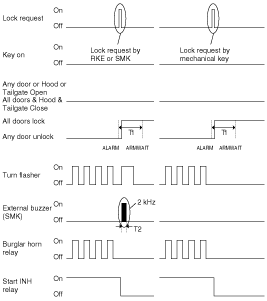

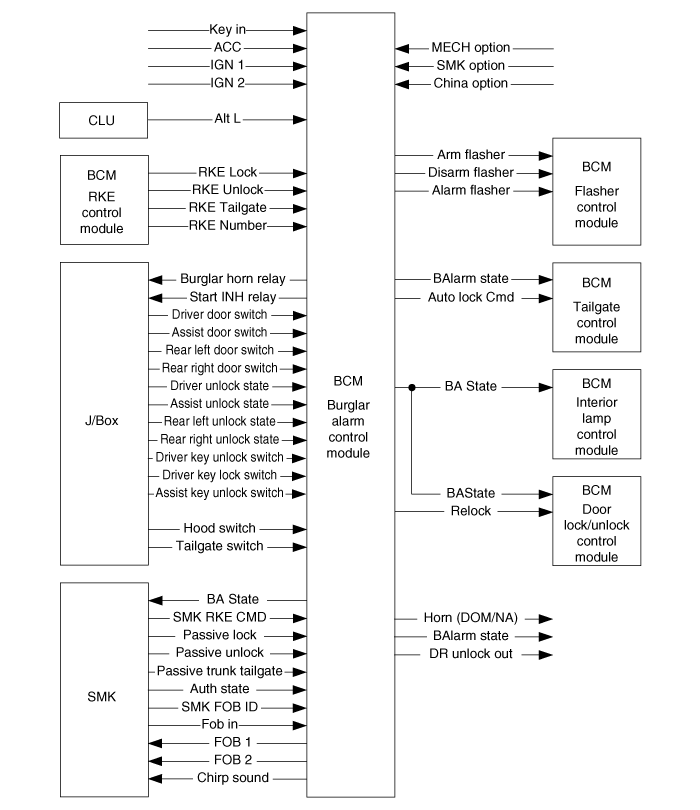

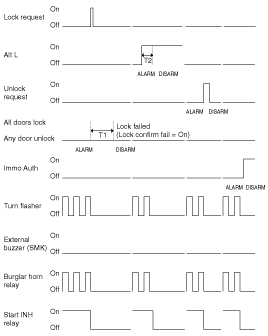

Burglar Alarm Function Data Flow

Function
Characteristics
Name
Hardware Label
Spec. Designation
Input
Logic
L_ACC
Accessory Signal
L_IGN2
Ignition 2 Power
L_KeyIn
Key In signal
Analog
A_IGN1
Ignition 1 Power
Communication
C_ASTDRSW
Assistant Door Switch Status
C_AltL
Engine is running
C_ASTUnlockState
Assistant door unlock state
C_DRVDRSW
Driver Door Switch status
C_DRVKeyLockSW
Driver Door Key Lock signal
C_DRVKeyUnlockSW
Driver Door Key Unlock signal
C_ASTKeyUnlockSW
Key Cylinder Unlock SW In Assistant Door
C_DRVUnlockState
Driver door unlock state
C_FobIn
Fob in SW
C_HoodSW
Hood Closing Status
C_PassiveTrunk_TG
PIC Passive access trunk / tailgate
C_PassiveLock
PIC Passive access lock for door module
C_PassiveUnlock
PIC Passive access unlock for door module
C_AuthState
Authentication state
C_RLDRSW
Rear Left Door Switch Status
C_RLUnlockState
Rear Left Door Unlock State
C_RRDRSW
Rear Right Door Switch Status
C_RRUnlockState
Rear Right Door Unlock State
C_SMK_FOB_ID
RKE Command ID or Passive Access Command ID
C_SMKRKECMD
SMK FOB RKE Command
C_TGSW
Tail gate closing status
Internal
b_RKELock
RKE Lock command: (Non-SMK Variant)
b_RKETGate
RKE Tailgate open command: (Non-SMK Variant)
b_RKEUnlock
RKE Unlock command: (Non-SMK Variant)
RKENumber
Issued RKE Number
b_MECHOption
ARM/DISARM by Mechanical Key Option
b_SMKOption
Smart Key Option
b_ChinaOption
China Option
Internal
b_HornAnsCmd
Horn Output Command by Horn Answer back function(Event Signal)
After create On event, automatically turned Off.
b_RKELockCmd
RKE Lock command(Event Signal)
Output
Internal
b_BAlarmState
Burglar Alarm State Information (all state indicated)
b_AlarmFlasher
Alarm Flasher Request
b_ArmFlasher
ARM Flasher Request
b_BAState
Burglar Alarm State Information
b_AutoLockCmd
Auto Lock Command(Event Signal)
b_DisarmFlasher
DISARM Flasher Request
b_Relock
Lock by Autolock
Communication
C_BAlarmState*
BCM Burglar Alarm State
C_BAState
Burglar Alarm State (To: SMK)
C_StartINHRly
Start Inhibit Relay Control (Non-Immobilizer & Non-Smartkey option)
C_BurglarHornRly
Burglar Alarm Horn Control
C_ChirpSound
Lock Sound Command to Smart key Unit for Ext Buzzer
C_FOB1
FOB ID1 at the origin of the change from DISARM to ARM
C_FOB2
FOB ID2 at the origin of the change from DISARM to ARM
Logic
O_DRUnlockOUT
Unlock Command to AV Unit
O_HornRly
Burglar Alarm Horn Output in North America Area Only

Burglar Alarm Control Function
This function specification describes the following states of Burglar Alarm Control
•
ARM Mode
•
DISARM Mode
•
ARMWAIT Mode
•
ALARM Mode
•
ARMHOLD Mode
•
AutoLockTimer1 Mode
•
AutoLockTimer2 Mode
•
PREARM Mode
•
REARM Mode
No
Pre-condition
Event
Result
Remark
1
All Entrances Closed
All kind of Lock
ARM Flash ARM Buzzer
Stay ARMWAIT mode
during 30 sec
and go to ARM mode
2
All Entrances Closed
All kind of Unlock
DISARM Flash
DISARM Buzzer
?
3
Any Entrance Opened
?
4
All Entrances Closed, After Lock Trunk or Hood Open
Trunk or Hood Open > Close
ARM Flash
?
5
Any Door Unlock
?
6
Any Door Open, Trunk or Hood Open
RKE Unlock
DISARM Flash
DISARM Buzzer
?
7
MTS, Passive Unlock
DISARM Flash
?
8
ARM mode
Any Entrance Opened
ALARM  Flash
ALARM  Buzzer
?

Function Description
Signal Activity
The Burglar Alarm System provides the function that shall inhibit the use of the vehicle when intrusion into the vehicle has been detected
1.
Burglar Alarm State is managed by the Burglar Alarm Control function for SMK, and is dependant on Burglar Alarm Control state as follows:
•
Burglar Alarm State = 1: Burglar Alarm Control state is in ARM or ALARM or REARM or ARMWAIT
•
Burglar Alarm State = 0: Burglar Alarm Control state is in DISARM or AUTOLOCKTIMER1 or AUTOLOCKTIMER2 or ARMHOLD or PREARM
2.
At the time of sending on the CAN signal to ARM type state from DISARM type state, the BCM unit shall send the CAN signals FOB1 and FOB2 set versus the memorized Key fob ID number.
•
If Key Number = 1 is sending, FOB1 = 1 otherwise FOB1 = 0
•
If Key Number = 2 is sending, FOB2 = 1 otherwise FOB2 = 0
3.
To make available to other internal BCM functions the current Burglar Alarm Control state
4.
Burglar Alarm State is updated each time the Burglar Alarm Control is changed of state.
Power Condition Activity
State by RESET Condition
Present State
After Reset
Action by Reset
DISARM
DISARM
No Action
ARMWAIT
ARMWAIT
No Action
ARM
ARM
No Action
ALARM
ALARM
Alarm Flashing
REARM
ALARM
Alarm Flashing
PREARM
DISARM
No Action
AUTOLOCKTIMER1
DISARM
No Action
AUTOLOCKTIMER2
DISARM
No Action
ARMHOLD
DISARM
No Action

1.
Reset means battery input restarted.
2.
Only in ALARM State or REARM State, when reset is occurred, it is retried Alarm Flashing.
3.
After reset, All timers should be reset.
State Description
Parameter Value
Name
Default Value
Description
Alarm Time
Non NA: 27 sec +0/-2.7sec
Time for Burglar Alarm Flashing
NA: 101 sec ±1sec
Alarm Single Time
27 sec ± 2 sec
Burglar Alarm Single activation Time
Alarm Pause Time
10 sec ± 1 sec
Burglar Alarm Single activation Pause Time
On Time
DOM, NA : 0.5 sec ± 0.05 sec
Burglar Alarm Pulse On Time
Others : 0.45 sec ± 0.045 sec
Off Time
DOM, NA : 1.0 sec ± 0.1 sec
Burglar Alarm Pulse Off Time
Others : 0.45 sec ± 0.045 sec
AutoLock1Time
30 sec ±3sec
Time for AUTOLOCKTIMER1 to ARMWAIT
AutoLock2Time
30 sec ±3sec
Time for AUTOLOCKTIMER2 to PREARM
AutoLock3Time
30 sec ±3sec
Time for ARMHOLD to PREARM
ArmWait Time
Non China: 30 sec ±3sec
Time for ARMWAIT to ARM mode
China: 8 + 0.1 sec
Lock Fail Confirm Time
5 sec ± 0.5sec
Maximum time to receive locking status from doors
Key IGN Time
30 sec ±3sec
Minimum time in IGN position prior to leave ALARM state
ALT Alarm Release Time
3 sec ±0.3sec
Minimum time with alternator active prior to leave ALARM state
Arm Disarm Buzzer Duration
0.1 sec ±10msec
Chirp sound single pattern duration

DISARM
1.
DISARM to DISARM
Condition 1
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
Any Door is Open(All Doors Close = Off) or Tailgate is Open(TG SWITCH = On)
Event
Unlock by RKE(RKE Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
Any Door is Open(All Doors Close = Off) or Tailgate is Open(TG SWITCH = On)
Event
Unlock by SMK(Passive Unlock command = Off> On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
State should not be changed

Condition 3
State
Description
Initial Condition
•
DISARM STATE
Event
Key On state (Key On = On)
Action
•
Security IND is Off(Security IND = Off)
•
State should not be changed

Condition 4
State
Description
Initial Condition
•
DISARM STATE
Event
Key Off state (Key On = Off)
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

T1 : 0.5 ± 0.05 sec, T2 : Arm Disarm buzzer duration
2.
ARMWAIT to DISARM
Condition 1
State
Description
Initial Condition
•
ARMWAIT STATE
Event
1.
Key In (Key In = On) or
2.
Fob In (Fob In = On) or
3.
Any Door is Open(All Doors Close = Off) or
4.
Hood is Open(Hood switch = On) or
5.
Tailgate is Open(TG SWITCH = On) or
6.
Any Door is Unlock(All Doors Lock = Off) or
7.
Authenticate by SMK(Auth State  = Authentication) or
8.
Pre-Authenticate by SMK(Auth State  = Preauthentication)
Action
•
Cancel Arm Wait Timer· State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
ARMWAIT STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Unlock by Mechanical Key (DRV Key Unlock Switch = Off > On or AST Key Unlock Switch = Off > On)
Action
•
Cancel Arm Wait Timer
•
State should go to DISARM State

3.
ARM to DISARM
Condition 1
State
Description
Initial Condition
•
ARM STATE
Event
1.
Authenticate by SMK(Auth State = Authentication) or
2.
Pre-Authenticate by SMK(Auth State = Preauthentication)
Action
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
ARM STATE
•
No China Option (China Option = Off)
Event
Key In and IGN1 On and IGN2 On(Key IGN On = On)
Action
•
State should go to DISARM State

Condition 3
State
Description
Initial Condition
•
ARM STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Unlock by Mechanical Key (DRV KeyUnlock Switch = Off > On or AST KeyUnlock Switch = Off > On)
Action
•
State should go to DISARM State

4.
AUTO LOCK TIMER1 to DISARM
Condition 1
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
Event
1.
Key In(Key In = On) or
2.
Fob In (Fob In = On) or
3.
Any Door is Open(All Doors Close = Off) or
4.
Hood is Open(Hood switch = On) or
5.
Tailgate is Open(TG SWITCH = On) or
6.
Authenticate by SMK(Auth State  = Authentication) or
7.
Pre-Authenticate by SMK(Auth State  = Preauthentication) or
8.
Lock request by RKE/SMK/Auto Lock but locking is fail (Lock Confirm Fail = Off >On)
Action
•
Cancel AutoLock1Timer
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock request by mechanical key but locking is fail ( Lock Confirm Fail = Off > On)
Action
•
Cancel AutoLock1Timer
•
State should go to DISARM State

5.
AUTO LOCK TIMER2 to DISARM
Condition 1
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
Event
1.
Key In On(Key In = On) or
2.
Fob In (Fob In = On) or
3.
Any Door is Open(All Doors Close = Off) or
4.
Tailgate is Open(TG SWITCH = On) or
5.
Authenticate by SMK(Auth State  = Authentication) or
6.
Pre-Authenticate by SMK(Auth State  = Preauthentication) or
7.
Lock request by RKE/SMK/Auto Lock but locking is fail (Lock Confirm Fail = Off > On)
Action
•
Cancel AutoLock2Timer
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock request by mechanical key but locking is fail ( Lock Confirm Fail = Off > On)
Action
•
Cancel AutoLock2Timer
•
State should go to DISARM State

6.
ARMHOLD to DISARM
Condition 1
State
Description
Initial Condition
•
ARMHOLD STATE
Event
1.
Key In (Key In = On) or
2.
Fob In (Fob In = On) or
3.
Any Door is Open(All Doors Close = Off) or
4.
Hood is Open(Hood switch = On) or
5.
Authenticate by SMK(Auth State  = Authentication) or
6.
Pre-Authenticate by SMK(Auth State  = Preauthentication) or
7.
Lock request by RKE/SMK/Auto Lock but locking is fail (Lock Confirm Fail = Off > On)
Action
•
Cancel ArmHold Timer
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
ARMHOLD STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
1.
Unlock by Mechanical Key (DRV Key Unlock Switch = Off > On or AST Key Unlock Switch = Off > On) or
2.
Lock request by mechanical key but locking is fail (Lock Confirm Fail = Off > On)
Action
•
Cancel ArmHold Timer
•
State should go to DISARM State

T1 : Lock fail confirm time
7.
PREARM to DISARM
Condition 1
State
Description
Initial Condition
•
PREARM STATE
Event
1.
Key In On (Key In = On) or
2.
Fob In (Fob In = On) or
3.
Authenticate by SMK (Auth State  = Authentication) or
4.
Pre-Authenticate by SMK (Auth State  = Preauthentication) or
5.
All Doors are Close (All Doors Close = On) and Hood is Close (Hood switch = Off) and Tailgate is Close(TG SWITCH = Off) and Any Door is Unlock (All Doors Lock = Off)
Action
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
PREARM STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
1.
Unlock by Mechanical Key (DRV Key Unlock Switch = Off > On or AST Key Unlock Switch = Off > On)
Action
•
State should go to DISARM State

Condition 3
State
Description
Initial Condition
•
PREARM STATE
•
Any Door is Open(All Doors Close = Off) or Tailgate is Open(TG SWITCH = On)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
State should go to DISARM State

8.
REARM to DISARM
Condition 1
State
Description
Initial Condition
•
REARM STATE
Event
1.
Tailgate release by RKE(RKE TGate command= Off > On) or
2.
Tailgate release by SMK (Passive Trunk_TG = Off > On) or
3.
Lock by RKE/SMK but Locking is Failed  ( Lock Confirm Fail = Off > On) or
4.
Alternator active level over 3sec (ALTL Alarm Release Timer ? ALTL AlarmReleaseTime) or
5.
Authenticate by SMK(Auth State  = Authentication) or
6.
Pre-Authenticate by SMK(Auth State  = Preauthentication)
Action
•
Cancel Key IGN Timer· Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
REARM STATE at Non China Option  (China Option = Off)
Event
Key In On and IGN1 On and IGN2 On over 30sec ( Key IGN Timer ? Key IGN Time)
Action
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

Condition 3
State
Description
Initial Condition
•
REARM STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
1.
Unlock by Mechanical Key (DRV Key Unlock Switch = Off > On or AST Key Unlock Switch = Off > On) or
2.
Lock by Mechanical Key but Locking is Failed(Lock Confirm Fail = Off>On)
Action
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

9.
ALARM to DISARM
Condition 1
State
Description
Initial Condition
•
ALARM STATE
Event
1.
Tailgate release by RKE(RKE Tail Gate command= Off > On) or
2.
Tailgate release by SMK (Passive Trunk_TG = Off > On) or
3.
Lock by RKE/SMK but Locking is Failed  ( Lock Confirm Fail = Off > On) or
4.
Alternator inactive level over 3sec (ALTL Alarm Release Timer ? ALTL AlarmReleaseTime) or
5.
Authenticate by SMK(Auth State  = Authentication) or
6.
Pre-Authenticate by SMK(Auth State  = Preauthentication)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = OFF)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

Condition 2
State
Description
Initial Condition
•
ALARM STATE at Non China Option(China Option = Off)
Event
Key In On and IGN1 On and IGN2 On over 30sec ( Key IGN Timer ? Key IGN Time)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = OFF)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

Condition 3
State
Description
Initial Condition
•
ALARM STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
1.
Unlock by Mechanical Key (DRV Key Unlock Switch = Off > On or AST Key Unlock Switch = Off > On) or
2.
Lock by Mechanical Key but Locking is Failed(Lock Confirm Fail = Off>On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = OFF)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

Condition 4
State
Description
Initial Condition
•
ALARM STATE
•
Any Door is Open(All Doors Close = Off) or Tailgate Open(TG SWITCH = On)
Event
1.
Unlock by RKE (RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
State should go to DISARM State

T1 : Lock fail confirm time,
T2 : ALT L alarm release time
ARM WAIT
1.
DISARM to ARMWAIT
Condition 1
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
Start Arm Wait Timer
•
State should go to ARMWAIT State

Condition 2
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Start Arm Wait Timer
•
State should go to ARMWAIT State

Condition 3
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Lock(All Doors Lock = On)
•
Any Door is Open(All Doors Close = Off)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
All Doors are Close(All Doors Close = Off > On)
Action
•
Start Arm Wait Timer
•
State should go to ARMWAIT State

Condition 4
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Lock(All Doors Lock = On)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Open(TG SWITCH = On)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Tailgate is Close(TG SWITCH = On > Off)
Action
•
Start Arm Wait Timer
•
State should go to ARMWAIT State

2.
ARMWAIT to ARMWAIT
Condition 1
State
Description
Initial Condition
•
any state
Event
enter ARMWAIT STATE
Action
•
Security IND is On (Security IND = On)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
ARMWAIT STATE
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
State should not be changed

3.
AUTO LOCK TIMER1 to ARMWAIT
Condition 1
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
Cancel AutoLock1Timer
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel AutoLock1Timer
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

Condition 3
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
•
Lock by Auto Lock (AutoLock1Timer ? AutoLock1Time) and Locking is success (AutoLockConfirmSuccess = Off > On)
Action
•
Cancel AutoLock1Timer
•
ARM Flashing(Arm Flasher = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

4.
ARMHOLD to ARMWAIT
Condition 1
State
Description
Initial Condition
•
ARMHOLD STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
Cancel ArmHold Timer
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

Condition 2
State
Description
Initial Condition
•
ARMHOLD STATE· Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel ArmHold Timer
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

5.
PREARM to ARMWAIT
Condition 1
State
Description
Initial Condition
•
PREARM STATE
Event
All Doors are Close (All Doors Close = On) and Hood is Close(Hood switch = Off) and Tailgate is Close(TG SWITCH = Off) and All Doors are Lock (All Doors Lock = On)
Action
•
ARM Flashing(Arm Flasher = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

6.
REARM to ARMWAIT
Condition 1
State
Description
Initial Condition
•
REARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

Condition 2
State
Description
Initial Condition
•
REARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

T1 : Lock fail confirm time, T2 : Arm Disarm buzzer duration
7.
ALARM to ARMWAIT
Condition 1
State
Description
Initial Condition
•
ALARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing. (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

Condition 2
State
Description
Initial Condition
•
ALARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing. (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
Start Arm Wait Timer
•
Security IND is On (Security IND = On)
•
State should go to ARMWAIT State

T1 : Lock fail confirm time,
T2 : Arm Disarm buzzer duration
ARM
1.
ARMWAIT to ARM
Condition 1
State
Description
Initial Condition
•
ARMWAIT STATE
Event
Arm Wait Timer ? ArmWait Time
Action
•
Cancel Arm Wait Timer
•
State should go to ARM State

2.
ARM to ARM
Condition 1
State
Description
Initial Condition
•
any state
Event
enter ARM STATE
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
ARM STATE
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
ARM Flashing(Arm Flasher = On)
•
ARM Buzzer Activation(Arm Buzzer = On)
•
State should not be changed

ARMHOLD
1.
ARMWAIT to ARMHOLD
Condition 1
State
Description
Initial Condition
•
ARMWAIT STATE
Event
1.
Tailgate release by RKE(RKE Tail Gate command= Off > On) or
2.
Tailgate release by SMK (Passive Trunk_TG = Off > On)
Action
•
Cancel Arm Wait Timer
•
DISARM Flashing(Disarm Flasher = On)
•
Start ArmHold Timer
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should go to ARMHOLD State

2.
ARM to ARMHOLD
Condition 1
State
Description
Initial Condition
•
ARM STATE
Event
1.
Tailgate release by RKE(RKE Tail Gate command= Off > On) or
2.
Tailgate release by SMK (Passive Trunk_TG = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
Start ArmHold Timer
•
State should go to ARMHOLD State

3.
ARMHOLD to ARMHOLD
Condition 1
State
Description
Initial Condition
Any State
Event
1.
Enter ARMHOLD State
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
ARMHOLD State
Event
1.
Tailgate release by RKE(RKE Tail Gate command= Off > On) or
2.
Tailgate release by SMK (Passive Trunk_TG = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
Restart ArmHold Timer
•
State should not be changed

AUTOLOCKTIMER1
1.
DISARM to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should go to AUTOLOCKTIMER1 State

2.
ARMWAIT to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
ARMWAIT STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel Arm Wait Timer
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should go to AUTOLOCKTIMER1 State

T1 : 0.5 ± 0.05 sec
3.
ARM to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
ARM STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
Start AutoLock1Timer
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
State should go to AUTOLOCKTIMER1 State

4.
AUTOLOCKTIMER1 to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
any state
Event
1.
enter AUTOLOCKTIMER1 STATE
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should not be changed

Condition 3
State
Description
Initial Condition
•
AUTOLOCKTIMER1 STATE
Event
AutoLock1Timer timer running and is elapsed (AutoLock1Timer ? AutoLock1Time)
Action
•
Cancel AutoLock1Timer
•
Lock by Auto lock (Auto Lock command = On; Relock = On)
•
State should not be changed

5.
ARMHOLD to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
ARMHOLD STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel ArmHold Timer
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should go to AUTOLOCKTIMER1 State

6.
REARM to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
REARM STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should go to AUTOLOCKTIMER1 State

T1 : 0.5 ± 0.05 sec
7.
ALARM to AUTOLOCKTIMER1
Condition 1
State
Description
Initial Condition
•
ALARM STATE
•
All Doors are Close(All Doors Close = On)
•
Hood is Close(Hood switch = Off)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel Key IGN Timer
•
Cancel Alarm Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing. (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock1Timer
•
State should go to AUTOLOCKTIMER1 State

T1 : 0.5 ± 0.05 sec
AUTOLOCKTIMER2
1.
DISARM to AUTOLOCKTIMER2
Condition 1
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Open(Hood switch = On)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock2Timer
•
State should go to AUTOLOCKTIMER2 State

2.
AUTOLOCKTIMER2 to AUTOLOCKTIMER2
Condition 1
State
Description
Initial Condition
•
Any State
Event
Enter AUTOLOCKTIMER2 STATE
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Open(Hood switch = On)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Restart AutoLock2Timer
•
State should not be changed

Condition 3
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
Event
AutoLock2Timer timer running and is elapsed (AutoLock2Timer ? AutoLock2Time)
Action
•
Cancel AutoLock2Timer
•
Lock by Auto lock (Auto Lock command = On; Relock = On)
•
State should not be changed

3.
PREARM to AUTOLOCKTIMER2
Condition 1
State
Description
Initial Condition
•
PREARM STATE
•
Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Open(Hood switch = On)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock2Timer
•
State should go to AUTOLOCKTIMER2 State

T1 : 0.5 ± 0.05 sec
4.
ALARM to AUTOLOCKTIMER2
Condition 1
State
Description
Initial Condition
•
ALARM STATE· Key Out state(Key On = Off)
•
All Doors are Close(All Doors Close = On)
•
Hood is Open(Hood switch = On)
•
Tailgate is Close(TG SWITCH = Off)
Event
1.
Unlock by RKE(RKE Unlock command = Off > On) or
2.
Unlock by SMK(Passive Unlock command = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer· Stop alarm flashing. (Alarm Flasher = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
DISARM Flashing(Disarm Flasher = On)
•
DISARM Buzzer Activation(Disarm Buzzer = On)
•
Start AutoLock2Timer
•
State should go to AUTOLOCKTIMER2 State

T1 : 0.5 ± 0.05 sec
PREARM
1.
DISARM to PREARM
Condition 1
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
Any Door is Open(All Doors Close = Off) or Hood is Open(Hood switch = On) or Tailgate is Open(TG SWITCH = On)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
State should go to PREARM State

Condition 2
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
Any Door is Open(All Doors Close = Off) or(Hood is Open(Hood switch = On) or Tailgate is Open(TG SWITCH = On)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
State should go to PREARM State

Condition 3
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
Hood is Open(Hood switch = On)
•
Any Door is Open(All Doors Close = Off)
•
Tailgate is Close(TG SWITCH = Off)
•
All Doors are Lock(All Doors Lock = On)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
All Doors are Close(All Doors Close = On)
Action
•
State should go to PREARM State

Condition 4
State
Description
Initial Condition
•
DISARM STATE
•
Key Out state(Key On = Off)
•
Hood is Open(Hood switch = On)
•
All Doors are Close(All Doors Close = On)
•
Tailgate is Open(TG SWITCH = On)
•
All Doors are Lock(All Doors Lock = On)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Tailgate is Close(TG SWITCH = Off)
Action
•
State should go to PREARM State

2.
AUTOLOCKTIMER2 to PREARM
Condition 1
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On) or
3.
Lock by Auto Lock (AutoLock1Timer ? AutoLock1Time) and Locking is success (AutoLockConfirmSuccess = Off > On)
Action
•
Cancel AutoLock2Timer
•
State should go to PREARM State

Condition 2
State
Description
Initial Condition
•
AUTOLOCKTIMER2 STATE
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel AutoLock2Timer
•
State should go to PREARM State

3.
ARMHOLD to PREARM
Condition 1
State
Description
Initial Condition
•
ARMHOLD STATE
Event
1.
Expired Auto Lock3Timer(ArmHold Timer ? AutoLock3Time) or
2.
Tailgate is open (TG SWITCH = On
Action
•
Cancel ArmHold Timer
•
State should go to PREARM State

4.
ALARM to PREARM
Condition 1
State
Description
Initial Condition
•
ALARM STATE
•
Key Out state(Key On = Off)
•
Any Door is Open(All Doors Close = Off) or Hood is Open(Hood switch = On) or Tailgate is Open(TG SWITCH = On)
Event
1.
Lock by RKE and Locking is success (RKE Lock Confirm Success = Off > On) or
2.
Lock by SMK and Locking is success (Passive Lock Confirm Success = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing. (Alarm Flasher = Off)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
State should go to PREARM State

Condition 2
State
Description
Initial Condition
•
ALARM STATE
•
Key Out state(Key On = Off)
•
Any Door is Open(All Doors Close = Off) or Hood is Open(Hood switch = On) or Tailgate is Open(TG SWITCH = On)
•
Mechanical key ARM/DISARM Option is enable(MECH Option = On)
Event
Lock by Mechanical Key and Locking is success (Mechanical Key Lock Confirm Success = Off > On)
Action
•
Cancel Alarm Timer
•
Cancel Key IGN Timer
•
Cancel ALTL Alarm Release Timer
•
Stop alarm flashing. (Alarm Flasher = Off)
•
Engine Start Inhibition state is released (Start INH Relay = Off)
•
Stop Burglar Alarm Horn(Burglar Horn Relay = Off / Horn Relay = Off )
•
State should go to PREARM State

T1 : Lock fail confirm time
5.
PREARM to PREARM
Condition 1
State
Description
Initial Condition
Any State
Event
1.
Enter PREARM State
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

REARM
1.
ALARM to REARM
Condition 1
State
Description
Initial Condition
•
ALARM STATE
•
Non China Option (China Option = Off)
Event
All Doors are Close(All Doors Close = On) and Hood is Close(Hood switch = Off) and Tailgate is Close(TG SWITCH = Off) and Finish ALARM Flashing (Alarm Flasher = Off)
Action
•
State should go to REARM State

Condition 2
State
Description
Initial Condition
•
ALARM STATE
•
China Option (China Option = On)
Event
Key On =Off  and All Doors are Close(All Doors Close = On) and Hood is Close(Hood switch = Off) and Tailgate is Close(TG SWITCH = Off) and Finish ALARM Flashing (Alarm Flasher = Off)
Action
•
State should go to REARM State

2.
REARM to REARM
Condition 1
State
Description
Initial Condition
•
REARM STATE
•
Key In = Off || A_IGN1 = Off || IGN2 = Off
Event
Key In = On & A_IGN1 = On & IGN2 = On
Action
•
Start Key IGN Timer
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
REARM STATE
•
Key IGN Timer running and Key IGN Timer < Key IGN Time
Event
Key In = Off || A_IGN1 = Off || IGN2 = Off
Action
•
Cancel Key IGN Timer
•
State should not be changed

Condition 3
State
Description
Initial Condition
•
REARM STATE
•
AltL = Off
Event
AltL = On
Action
•
Start ALTL Alarm Release Timer
•
State should not be changed

Condition 4
State
Description
Initial Condition
•
REARM STATE
•
ALTL Alarm Release Timer running and ALTL Alarm Release Timer < ALTL AlarmReleasTime
Event
AltL = Off
Action
•
Cancel ALTL Alarm Release Timer
•
State should not be changed

Condition 5
State
Description
Initial Condition
•
Any State
Event
Enter REARM STATE
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

ALARM
•
Alarm pattern: MID/China 1 time Alarm flashing and Horn Activation (Alarm On Time 1 time).
•
Alarm pattern: GEN 3 times Alarm flashing and Horn Activation (Alarm On Time / Alarm Off Time, 3 time).
1.
ARM to ALARM
Condition 1
State
Description
Initial Condition
•
ARM STATE
Event
1.
Any Door is Open(All Doors Close = Off) or
2.
Hood is Open(Hood switch = On) or
3.
Tailgate is Open(TG SWITCH = On)
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On)
•
Start Alarm Timer
•
Engine Start Inhibition is On (Start INH Relay = On)
•
State should go to ALARM State

Condition 2
State
Description
Initial Condition
•
ARM STATE at  China Option (China Option = On)
•
Non SMK Variant (SMKOption = Off)
Event
Key On = On
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On )
•
Start Alarm Timer
•
Engine Start Inhibition is On (Start INH Relay = On)
•
State should go to ALARM State

Condition 3
State
Description
Initial Condition
•
ARM STATE at China Option (China Option = On)
•
SMK Variant (SMKOption = On)
Event
Key In = On
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On)
•
Start Alarm Timer
•
Engine Start Inhibition is On (Start INH Relay = On)
•
State should go to ALARM State

2.
REARM to ALARM
Condition 1
State
Description
Initial Condition
•
REARM STATE
Event
1.
Any Door is Open(All Doors Close = Off) or
2.
Hood is Open(Hood switch = On) or
3.
Tailgate is Open(TG SWITCH = On)
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On)
•
Start Alarm Timer
•
State should go to ALARM State

Condition 2
State
Description
Initial Condition
•
REARM STATE at  China Option (China Option = On)
•
Non SMK Variant (SMKOption = Off)
Event
Key On = On
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On)
•
Start Alarm Timer
•
State should go to ALARM State

Condition 3
State
Description
Initial Condition
•
REARM STATE at  China Option (China Option = On)
•
SMK Variant (SMKOption = On)
Event
Key In = On
Action
•
Start Alarm Flashing (Alarm Flasher = On)
•
Start Alarm Buzzer (Burglar Horn Relay = On / Horn Relay = On)
•
Start Alarm Timer
•
State should go to ALARM State

3.
ALARM to ALARM
Condition 1
State
Description
Initial Condition
•
ALARM STATE
Event
Alarm Timer is running and Alarm Timer ? AlarmTime
Action
•
Cancel Alarm Timer
•
Stop Alarm Flashing(Alarm Flasher = Off)
•
Stop Alarm Buzzer (Burglar Horn Relay = Off / Horn Relay = Off)
•
State should not be changed

Condition 2
State
Description
Initial Condition
•
ALARM STATE
•
Key In = Off || A_IGN1 = Off || IGN2 = Off
Event
Key In = On & A_IGN1 = On & IGN2 = On
Action
•
Start Key IGN Timer
•
State should not be changed

Condition 3
State
Description
Initial Condition
•
ALARM STATE
•
Key IGN Timer < Key IGN Time
Event
Key In = Off || A_IGN1 = Off || IGN2 = Off
Action
•
Cancel Key IGN Timer
•
State should not be changed

Condition 4
State
Description
Initial Condition
•
ALARM STATE
•
AltL = Off
Event
AltL = On
Action
•
Start ALTL Alarm Release Timer
•
State should not be changed

Condition 5
State
Description
Initial Condition
•
ALARM STATE
•
ALTL Alarm Release Timer < ALTL AlarmReleaseTime
Event
AltL = Off
Action
•
Cancel ALTL Alarm Release Timer
•
State should not be changed

Condition 6
State
Description
Initial Condition
•
Any State
Event
Enter ALARM STATE
Action
•
Security IND is Blinking (Security IND = Blinking; 0.32sec:On/2sec:Off)
•
State should not be changed

T1 : Alarm single time, T2 : Alarm pause time,
T3 : On time, T4 : Off time

T1 : Alarm single time, T3 : On time, T4 : Off time
Schematic Diagrams
Circuit Diagram ...

Repair procedures
Inspection Front Door Lock Actuator Inspection 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. Remove the front door module. 3. Disconnect the 7P connector from ...

Other Information:

Rocking the vehicle
If it is necessary to rock the vehicle to free it from snow, sand, or mud, first turn the steering wheel right and left to clear the area around your front wheels. Then, shift back and forth betwe ...

Tire and loading information label
The label located on the driver's door sill gives the original tire size, cold tire pressures recommended for your vehicle, the number of people that can be in your vehicle and vehicle c ...

Categories

Copyright © www.kispmanual.com 2014-2019
