Kia Sportage: Schematic Diagrams - SRSCM - Restraint - Kia Sportage SL Service & Repair ManualKia Sportage: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Restraint / SRSCM / Schematic Diagrams

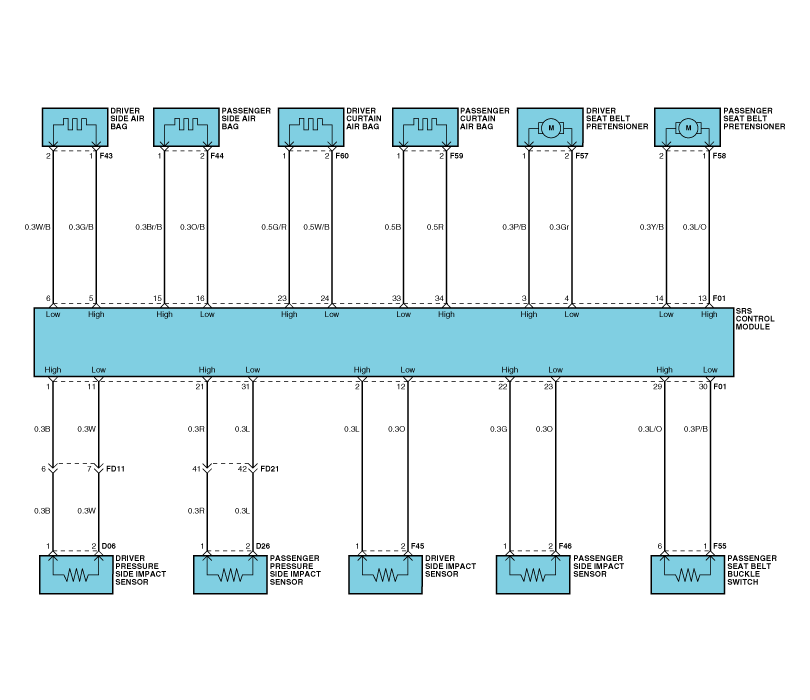

Circuit Diagram (1)

Circuit Diagram (2)

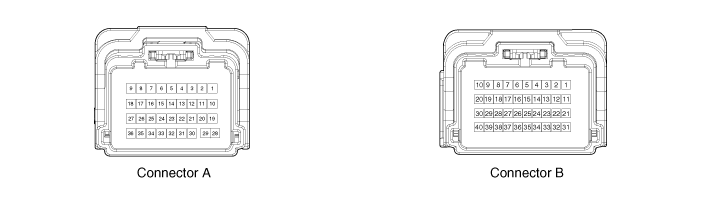

Harness Connector

Pin
Function (Connector A)
Pin
Function (Connector A)
1
Ignition
1
Pressure side impact sensor [Driver] High
2
 -
2
Side impact sensor [Driver] High
3
Airbag warning lamp
3
Seat belt pretensioner [Driver] High
4
(1st stage) Driver airbag High
4
Seat belt pretensioner [Driver] Low
5
(1st stage) Driver airbag Low
5
Side airbag [Driver] High
6
 -
6
Side airbag [Driver] Low
7
 -
7
 -
8
Front impact sensor [Driver] High
8
 -
9
CAN_High
9
 -
10
 -
10
 -
11
 -
11
Pressure side impact sensor [Driver] Low
12
Telltale warning lamp
12
Side impact sensor [Driver] Low
13
(1st stage) Passenger airbag High
13
Seat belt pretensioner [Passenger] High
14
(1st stage) Passenger airbag Low
14
Seat belt pretensioner [Passenger] Low
15
 -
15
Side airbag [Passenger] High
16
 -
16
Side airbag [Passenger] Low
17
Front impact sensor [Driver] Low
17
 -
18
CAN_Low
18
 -
19
Ground
19
 -
20
 -
20
 -
21
Crash Output
21
Pressure side impact sensor [Passenger] High
22
(2nd stage) Driver airbag High
22
Side impact sensor [Passenger] High
23
(2nd stage) Driver airbag Low
23
Curtain airbag [Driver] High
24
 -
24
Curtain airbag [Driver] Low
25
 -
25
Anchor pretensioner [Driver] High
26
Front impact sensor [Passenger] High
26
Anchor pretensioner [Driver] Low
27
 -
27
 -
28
 -
28
 -
29
 -
29
Seat buckle switch [Passenger] High
30
Seat belt reminder interface [Passenger]
30
Seat buckle switch [Passenger] Low
31
(2nd stage) Passenger airbag High
31
Pressure side impact sensor [Passenger] Low
32
(2nd stage) Passenger airbag Low
32
Side impact sensor [Passenger] Low
33
 -
33
Curtain airbag [Passenger] High
34
 -
34
Curtain airbag [Passenger] Low
35
Front impact sensor [Passenger] Low
35
Anchor pretensioner [Passenger] High
36
 -
36
Anchor pretensioner [Passenger] Low
?
?
37
-
?
?
38
 -
?
?
39
Seat buckle switch [Driver] High
?
?
40
Seat buckle switch [Driver] Low
