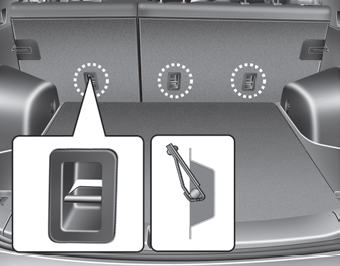

Child restraint hook holders are located on the back of the rear seatbacks.

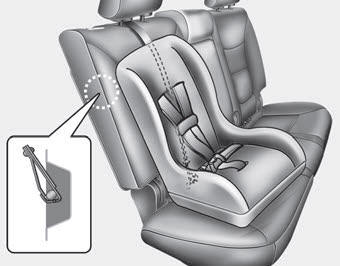

1.Route the child restraint seat strap over the seatback.
For vehicles with adjustable headrests, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback. In case of interference between the child restraint seat and the headrest remove the particular head restraint for better fitment of the child restraint seat.
2.Connect the tether strap hook to the appropriate child restraint hook holder and tighten to secure the child restraint seat.
WARNING - Tether strap
Never mount more than one child restraint to a single tether or to a single lower anchorage point. The increased load caused by multiple seats may cause the tethers or anchorage points to break.
Check that the child restraint system is secure by pushing and pulling it in different directions. Incorrectly fitted child restraints may swing, twist, tip or separate causing death or serious injury.
Components and Components Location
Components Location
1. Front axle2. Front lower arm3. Drive shaft4. Stabilizer bar5. Steering gearbox6. Sub frame7. Front strut assembly
...
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing
fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to y ...
