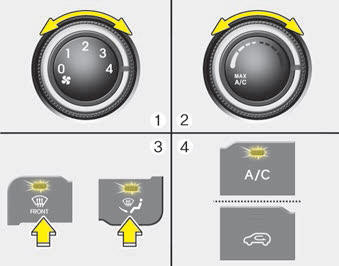

1.Set the fan speed to the desired position.
2.Select desired temperature.
3.Select the or position.
4.The outside (fresh) air will be selected automatically. If the position is selected, air conditioning will also be selected automatically.
If the air conditioning and/or outside (fresh) air position are not selected automatically, press the corresponding button manually.
