Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Panoramaroof / Components and Components Location
| Component Location |

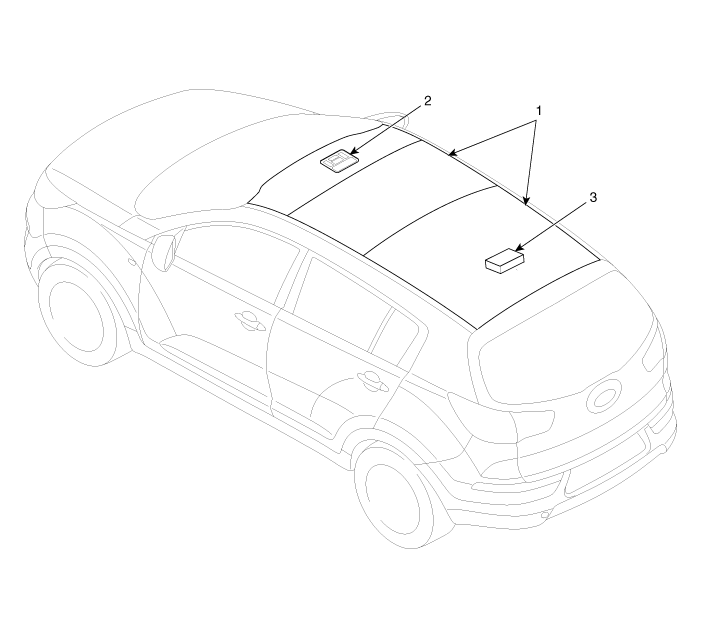

| 1. Panoramaroof 2. Panoramaroof switch | 3. Panoramaroof motor & controller |
| Components |

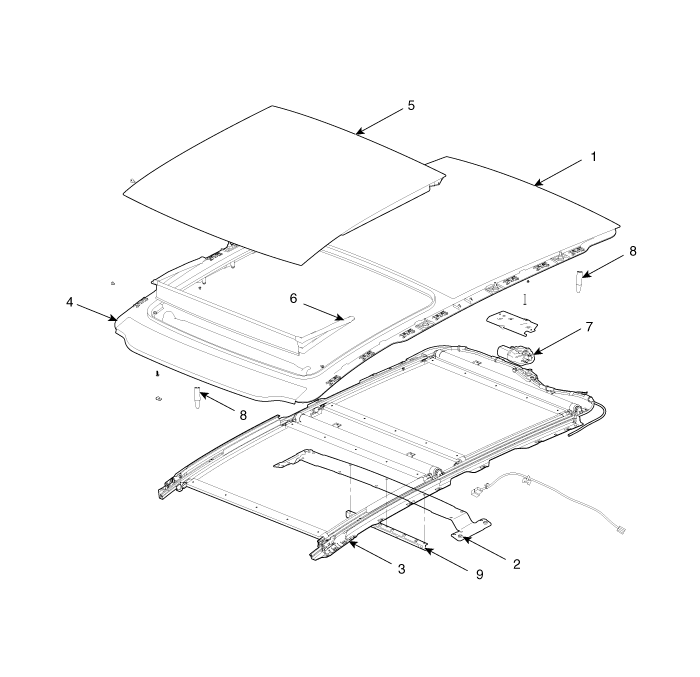

| 1. Panoramaroof frame assembly 2. Panoramaroof impact cross member assembly 3. Panoramaroof mechanism assembly 4. Panoramaroof front glass panel assembly 5. Panoramaroof moving glass panel assembly | 6. Panoramaroof deflector assembly 7. Panoramaroof motor assembly 8. Panoramaroof center device 9. Impact bracket |
Panoramaroof
...
Schematic Diagrams
Circuit Diagram (1)
Circuit Diagram (2)
...
