Kia Sportage: Schematic Diagrams - Panoramaroof - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Panoramaroof / Schematic Diagrams

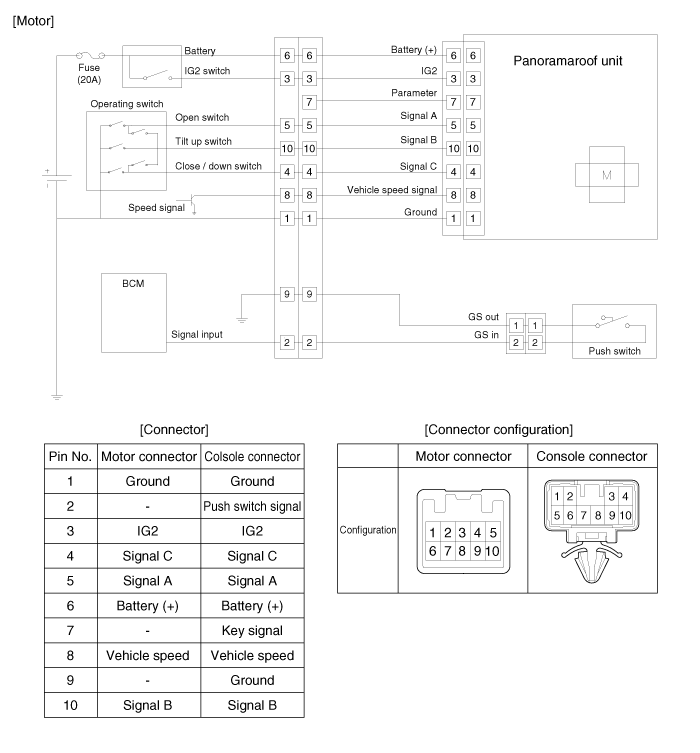

Circuit Diagram (1)

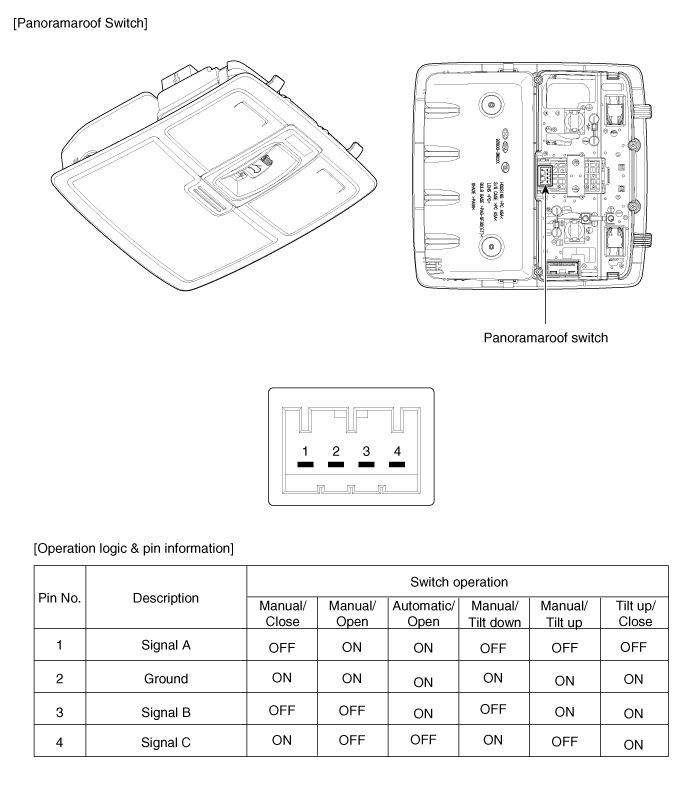

Circuit Diagram (2)

Components and Components Location
Component Location 1. Panoramaroof2. Panoramaroof switch3. Panoramaroof motor & controller Components 1. Panoramaroof frame assembly2. Panoramaroof impact cross member assembly3. Panora ...

Panoramaroof Switch: Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the overhead console lamp assembly. (Refer to the BD group - "Roof trim") 3. Check for continuity between the termina ...
