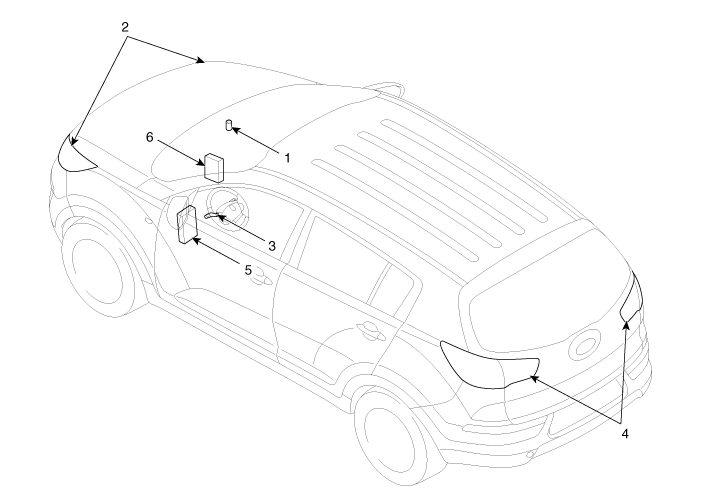

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. SJB (Smart Junction Box)
6. BCM (Body Control Module)

Specifications
Specifications ItemsSpecificationsRated voltage5VLoadMax. 1mADetection illuminationsTail lampON : 1.57 ± 0.10 (V)OFF : 2.56 ± 0.20 (V)Head lampON : 1.57 ± 0.10 (V)OFF : 2.56 ± 0.20 (V) ...

Schematic Diagrams
Circuit Diagram ...
