Kia Sportage: Rear Driveshaft: Components and Components Location - Rear Driveshaft Assembly - Driveshaft and axle - Kia Sportage SL Service & Repair ManualKia Sportage: Rear Driveshaft: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Driveshaft and axle / Rear Driveshaft Assembly / Rear Driveshaft: Components and Components Location

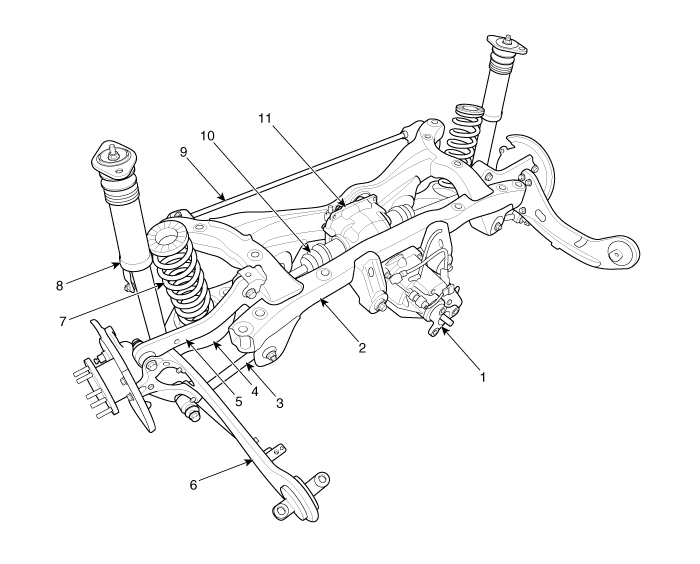

Component location

1. Coupling
2. Sub frame
3. Assist arm
4. Lower arm
5. Upper arm
6. Trailing arm
7. Coil spring
8. Shock absorber
9. Stabilizer
10. Drive shaft
11. Differential carrier assembly

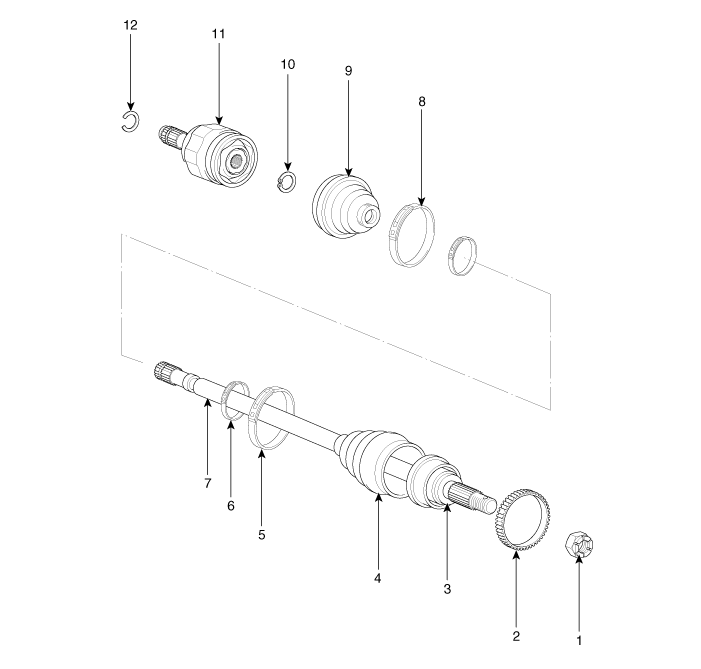

Components

1. Lock nut
2. Tone wheel
3. BJ assembly
4. BJ boot
5. BJ boot big part band
6. Boot small part band
7. Shaft
8. TJ boot big part band
9. TJ boot
10. Snap ring
11. TJ assembly
12. Circlip

Rear Driveshaft Assembly
...

Rear Driveshaft: Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and tire (A) from rear hub. Tightening torque : 88.3 ~ 1 ...
