Kia Sportage: Air intake control - Manual heating and air conditioning - Automatic climate control system - Features of your vehicle - Kia Sportage SL Owners ManualKia Sportage: Air intake control

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Features of your vehicle / Automatic climate control system / Manual heating and air conditioning / Air intake control

This is used to select the outside (fresh) air position or recirculated air position.

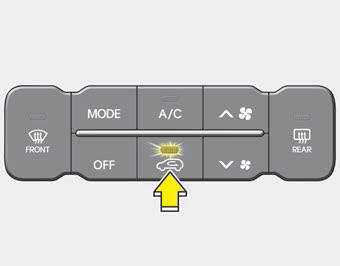

To change the air intake control position, push the control button.

Recirculated air position

With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.

Outside (fresh) air position

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) may cause fogging of the windshield and side windows and the air within the passenger compartment may become stale.

In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

WARNING - Reduced Visibility

Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility.

WARNING - Recirculated Air

Continue using the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.

Temperature control
The temperature will increase to the maximum (HI) by turning the knob to the extreme right. The temperature will decrease to the minimum (Lo) by turning the knob to the extreme left. When turn ...

Fan speed control
The fan speed can be set to the desired speed by operating the fan speed control switch. To change the fan speed, press () the switch for higher speed, or push () the switch for lower speed. ...
