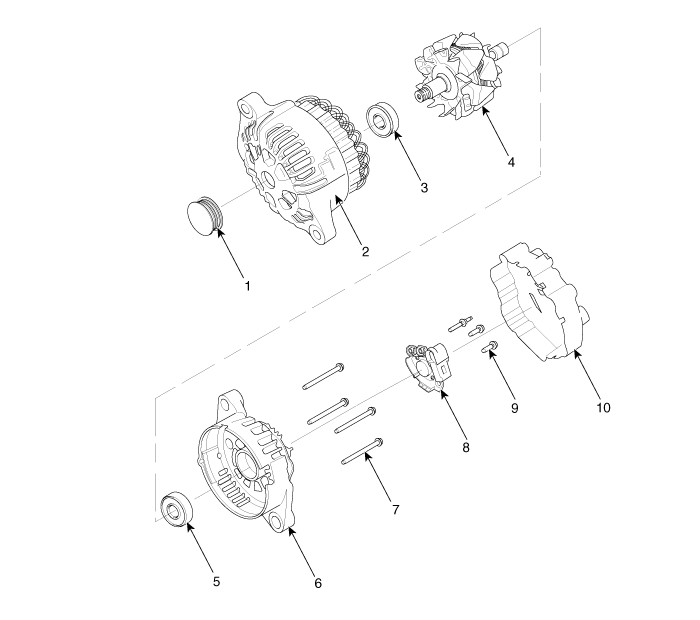

Components

1. Pulley
2. Front bracket
3. Front bearing
4. Rotor
5. Rear bearing
6. Rear bracket
7. Through bolt
8. Regulator assembly
9. Regulator bolt
10. Rear cover

Repair procedures
On-vehicle Inspection     Х Check that the battery cables are connected to the correct terminals. Х Disconnect the battery cables when the battery is given ...

Alternator: Repair procedures
Removal and Installation 1. Disconnect the battery negative terminal first, then the positive terminal. Tightening torque : (+) terminal : 7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft) (-) te ...
