Kia Sportage: Body Control Module (BCM): Schematic Diagrams - BCM (Body Control Module) - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Body Control Module (BCM): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / BCM (Body Control Module) / Body Control Module (BCM): Schematic Diagrams

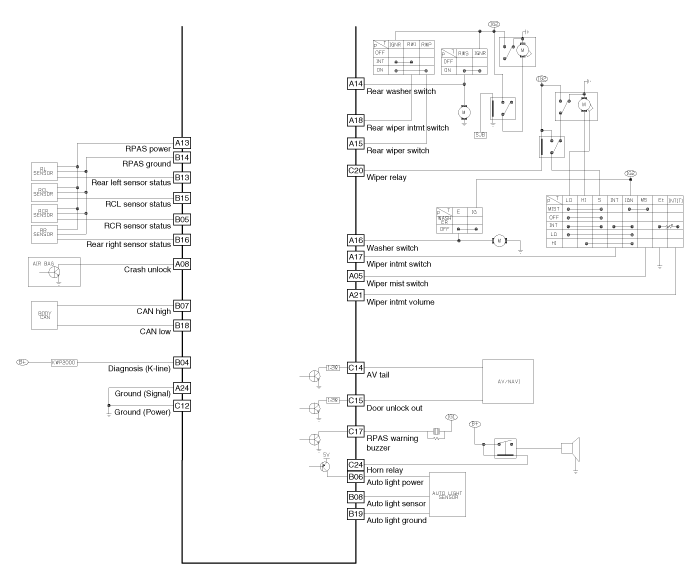

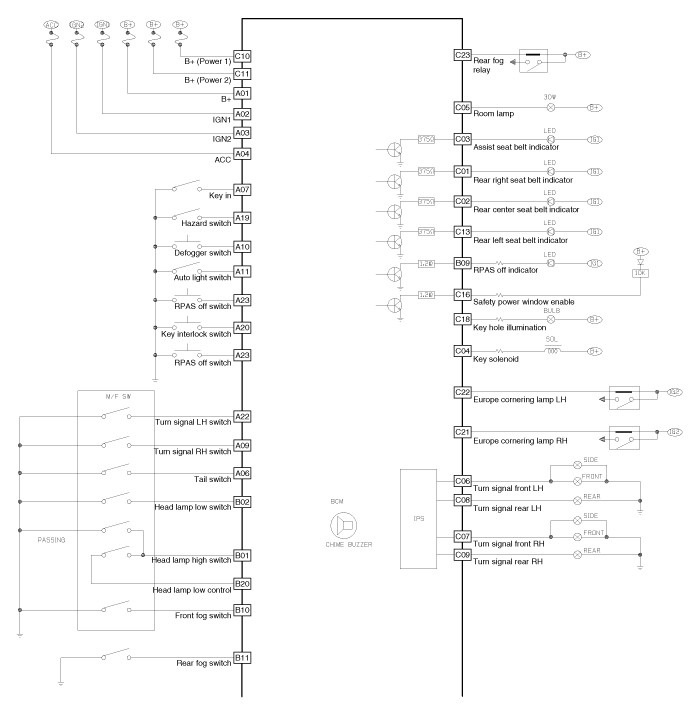

Circuit Diagram

Body Control Module (BCM): Specifications
Specifications Electrical Performance ItemRequirementRemarkRated voltageDC 12VOperating voltage rangeDC 9 ~ 16VShall activate normally in these rangeOperating temperature range-30°C ~ +80°CShall ...

Body Control Module (BCM): Description and Operation
Description Body control module receives various input switch signals controlling time and alarm functions for front washer interlocking wiper, front intermittent wiper, mist wiper, rear wa ...
