Kia Sportage: Power Door Mirror Switch: Schematic Diagrams - Power Door Mirrors - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Power Door Mirror Switch: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch: Schematic Diagrams

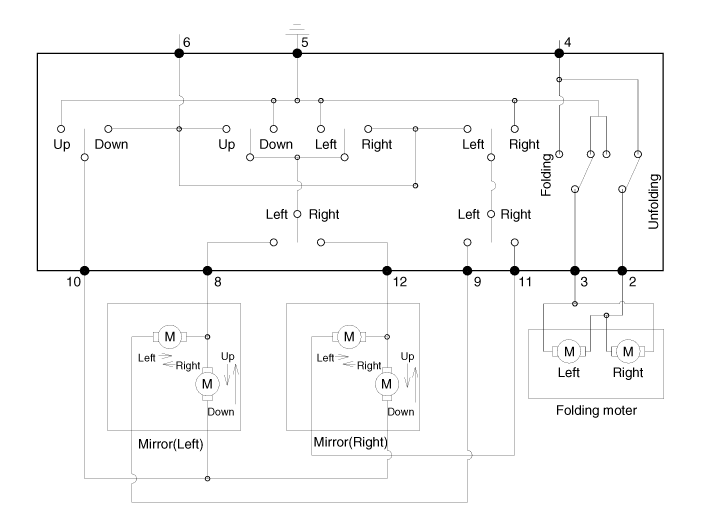

Circuit Diagram

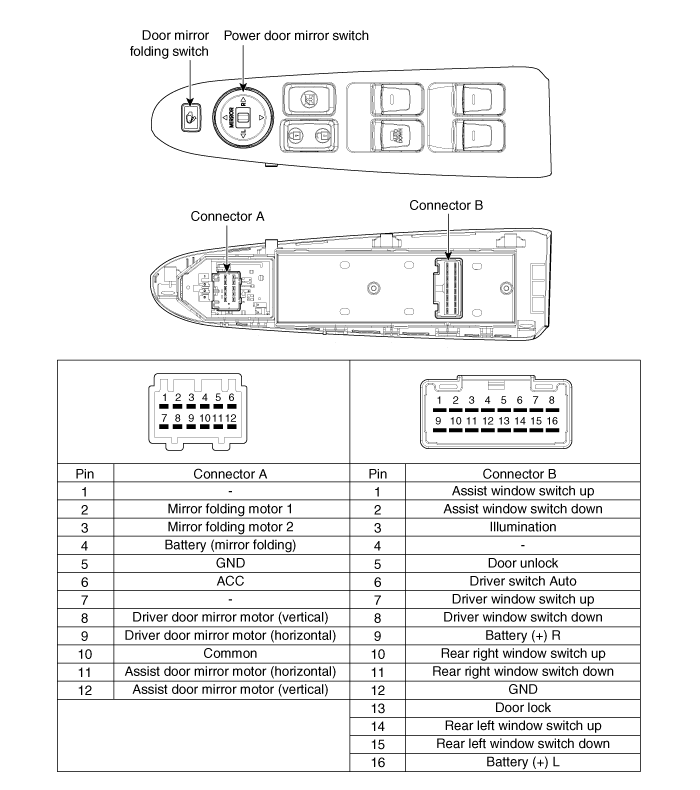

Components and Components Location
Component Location 1. Power door mirror2. Power door mirror switch3. Power folding mirror switch ...

Power Door Mirror Switch: Repair procedures
Removal Driver Door Mirror Switch 1. Disconnect the negative battery terminal. 2. Remove the front door trim. (Refer to the BD group - "Front door") 3. Remove the screws from power windo ...
